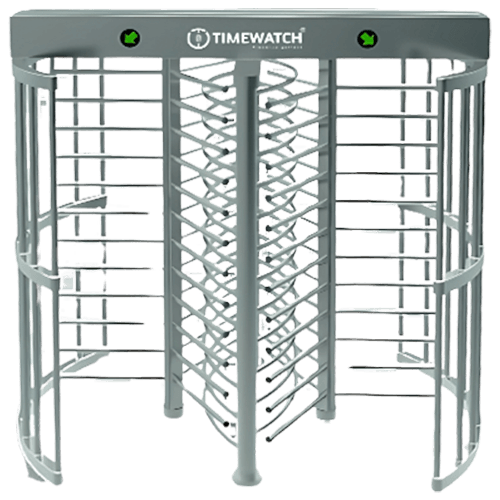

FHT2300D is a Double lane 3 rod Full Height Turnstile which is driven by DC brushless motor, one can easily pass with very small passing resistance. It has several operating modes such as bi-direction, single-direction, always free, and always locked. It comes with an LED directions indicator and an automatic function of opening or closing when powered off. The turnstile has an Anti-hit function, when the turnstile touches the passing people, it will stop immediately and will automatically start again.
Corrosion Protected SS Frame
LED Indicator
IP 44 Protection
Wired Terminal
Heavy duty
Delay time
| Specification | Details |
|---|---|
| Integration | Face, Fingerprint, Card, Password & QR |
| Protection Level | IP44 |
| Humidity | 95% |
| Solenoid/ motor | 24V DC 100% |
| Operating Voltage | 12V Plus |
| Passage Width | <550mm Dual Lane |
| Arms | 3 spokes@120° angle x10 rotating arms (standard) 4 spokes@90° angle x10 rotating arms (optional) |
| Frequency | 50-60Hz |
| Electromagnetic Drive | DC |
| Operating Temper Range | -25~+70 °C |
| Power Supply | 100V~240V AC |
| Power Consumption | 30W |
| Dimension | 2100 x 1500 x 2310 mm |
