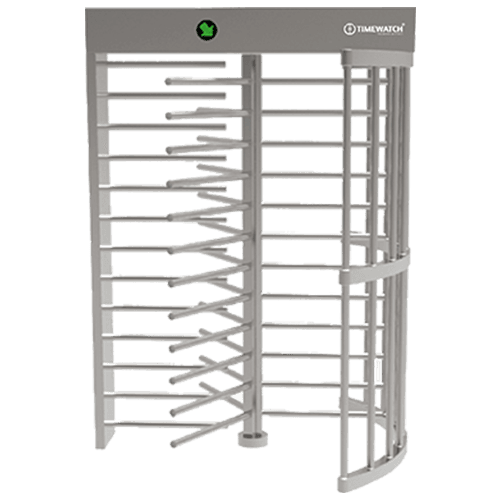

FHT2400 is a Single Lane 4 Rod Full Height Turnstile driven by a DC Brushless Motor, allowing users to pass with very low passing resistance. It supports multiple operating modes, including bi-directional, single-directional, always free, and always locked. It comes with an LED Direction Indicator and an automatic opening/closing function when powered off. The turnstile features an Anti-Hit Function—when the rotating arm touches a passing user, it immediately stops and automatically resumes operation, ensuring safe and reliable access control.
Corrosion Protected SS Frame
LED Indicator
IP 44 Protection
Wired Terminal
Heavy duty
Delay time
| Specification | Details |
|---|---|
| Integration | Face, Fingerprint, Card, Password & QR |
| Protection Level | IP44 |
| Humidity | 95% |
| Power Supply | 220V~240V AC |
| Operational Voltage | 24V DC |
| Passage Width | 550mm |
| Arms | Standard: 3 Spokes @ 120° × 10 Rotating Arms Optional: 4 Spokes @ 90° × 10 Rotating Arms |
| Frequency | 50-60Hz |
| Electromagnetic Drive | DC |
| Operating Temper Range | -25~+70 °C |
| Power Consumption | 30W |
| Dimensions | 1400 × 1200 × 2310 mm |
