TWLD-SBG1000 is a P-Type Swing Gate Barrier driven by a 24V DC Brushless Motor. It supports multiple opening modes, including Card Swiping, Face Recognition, Fingerprint Biometric Verification, Infrared Induction Automatic Opening, and Button Opening. The device features advanced identification technology along with intelligent safety functions such as Wrong Entry Detection and Forced Entry Infrared Alarms. It provides fast, efficient, secure, and user-friendly access control for a wide range of applications.
≥6 mllion movement life
Illegal intrusion infrared alarm
24V DC brushless motor, low noise
Auto Self Inspection & Alarm Prompt
Low Maintenance
SS304

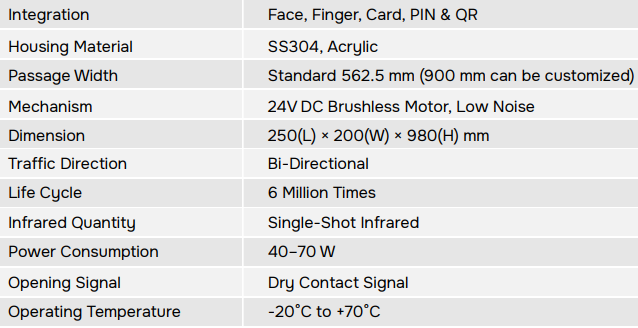

| Specification | Details |
|---|---|
| Integration | Face, Finger, Card, PIN & QR |
| Housing Material | SS304, Acrylic |
| Passage Width | Standard 562.5 mm (900 mm can be customized) |
| Mechanism | 24V DC Brushless Motor, Low Noise |
| Dimension | 250(L) × 200(W) × 980(H) mm |
| Traffic Direction | Bi-Directional |
| Life Cycle | 6 Million Times |
| Infrared Quantity | Single-Shot Infrared |
| Power Consumption | 40-70 W |
| Opening Signal | Dry Contact Signal |
| Operating Temperature | -20°C to +70°C |
