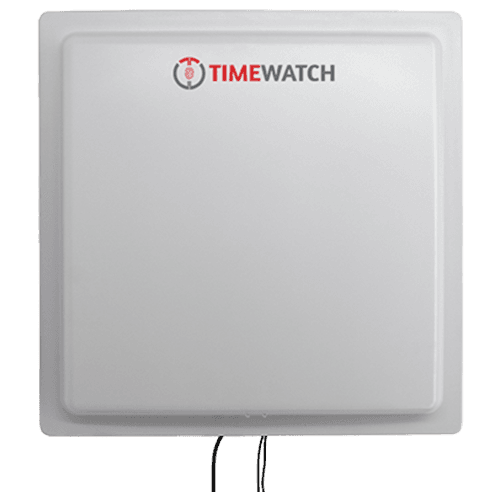

TW-UR12/12T is an out door IP65-rated long-range UHF card reader designed specifically for UHF Card and Tag (Gen2) With its 12 meter read-range, TW-UR12/12T provides users convenient RFID authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their RFID credential held in close range to the RFID reader. TW-UR12/12T has a built-in Wiegand-Out port for control panel conectivity.
Built in Buzzer
national and american standard frequency
Dual polarization reading
Multi Range Availability
| Specification | Details |
|---|---|
| Working Frequency | Indian standard (865~867MHz), American standard (902~928MHz), European Standard (865~868MHz) or customize other frequency |
| Support Protocol | ISO18000-6B, ISO18000-6C(EPC GEN2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Communication | Wiegand & RS-232, RS-485 (Optional), [TCP/IP (TW-UR12T)] |
| Working Way | Automatically reading card at regular time, can set reading card way |
| Frequency Power | Up to 26dBm, adjustable by software |
| Reading Range | Up to 12 meter |
| Reading Speed | Dual polarization reading |
| Tag Type | Passive UHF RFID Tag (Gen2 UHF) |
| Antenna | Built-in circular polarization antenna. |
| Multi Tag Reading | Support Anti Collision for multiple tag |
| Integration | Inbuilt relay for Boom Barrier integration |
| Working Voltage | 9V to 12V DC |
| Working Status Indication | Buzzer, LED |
| Power | 1W |
| Working Temperature | -20 ~80℃ |
| Storage Temperature | -40 ~100℃ |
| Working Humidity | 20%~95%(No condensing) |
| Protection Rating | IP65 (Outdoor Use) |
| Mounting | Pole Mount / Wall Mount |
| Housing Material | Rugged, Weatherproof enclosure |
