How Does a Body Scanner Work?
What Is a Security Body Scanner?

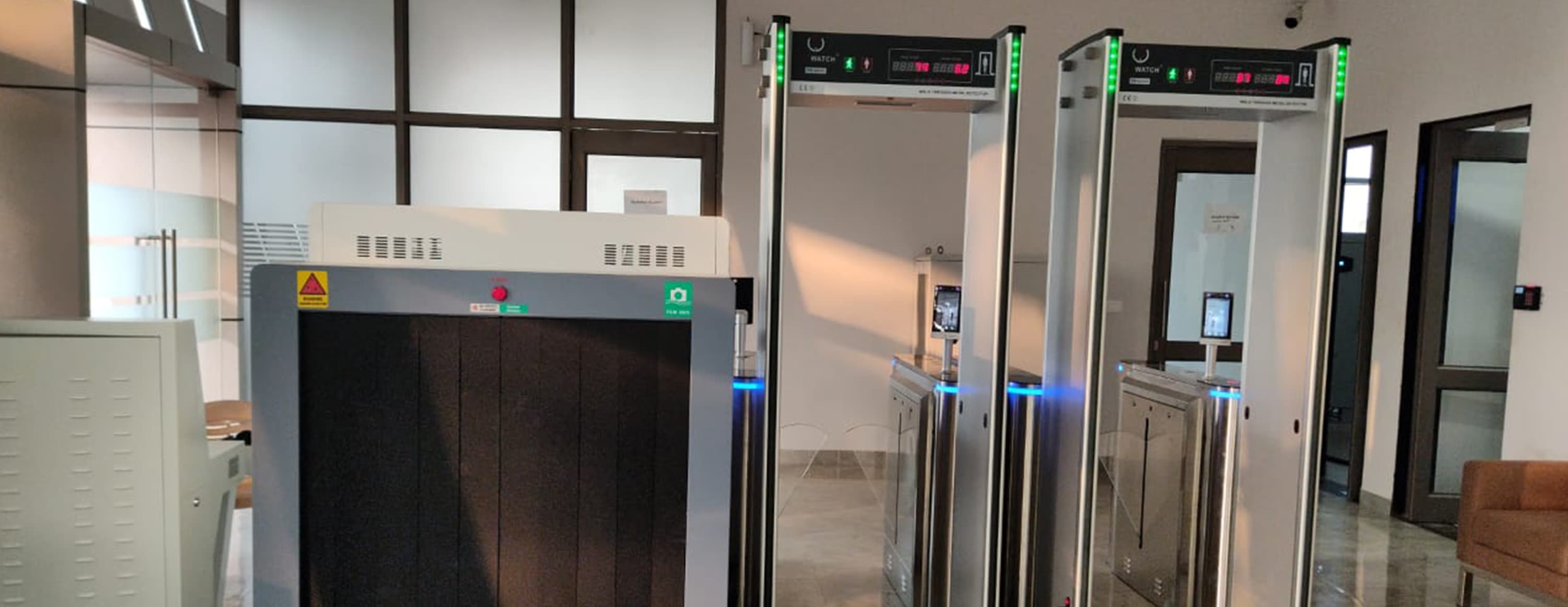

It is also called a full body scanner or a passenger screening portal. At a Saudi checkpoint it stands in the same lane as a walk-through metal detector and an X-ray baggage scanner, but it answers a different question from either. The archway asks whether there is metal on this person. The scanner asks whether there is anything on this person's body surface that does not look like body surface.
That difference is the whole reason the equipment exists. An archway is blind to a ceramic edge, a moulded composite shape or a packed powder, because none of them is conductive metal. A body scanner responds to physical shape rather than to conductivity, so it reaches a category of concealment the archway cannot.
It is worth being equally precise about what the equipment is not. A body scanner is an indication device, not an identification device. It produces a flag over a region; a trained operator establishes what is actually there. Specification language that implies the machine identifies a named object is wrong, and on a public-sector tender in the Kingdom it is the kind of wording a technical evaluator will mark against the bidder rather than in their favour.
How Does a Body Scanner Work?
An active millimetre wave body scanner works by transmitting low-power, non-ionising radio energy in the millimetre wavelength band towards the person standing in the portal. Clothing is largely transparent at these wavelengths, so the energy passes through fabric and reflects off the skin and off any object sitting between the skin and the clothing. Receiver antennas capture those reflections as the array sweeps around the body or steers electronically across it. A signal processing unit reconstructs a three-dimensional representation of the body surface from the timing and strength of the returns. Automatic target recognition software then analyses that reconstruction for regions that depart from an expected body contour, and displays a generic outline with a marker over any flagged region, so the operator resolves only that area.
Transmit, pass through, reflect, capture, reconstruct, analyse, display. The scan itself takes a few seconds and the person stands still in a defined pose throughout. Everything else on this page sits beneath those seven verbs, including the operational questions that decide whether a scanner improves a Saudi checkpoint or simply moves the queue somewhere else.
The Body Scanning Technologies in Use
Three physically different approaches have been used to screen people. They are routinely discussed as one category, which is the source of most of the confusion around safety, because on the radiation question they are not comparable at all.
Active millimetre wave
This is the dominant technology for passenger screening worldwide and the one a Saudi project is most likely to be evaluating. An antenna array transmits radio energy in the millimetre band at low power. The wavelength is short enough to resolve objects of a useful size and long enough that clothing is largely transparent to it, which is the combination that makes the technique work at all. The energy reflects from the skin, and differently again from materials lying against or near it.
By capturing reflections from many positions around the body (either by rotating an array around the person or by switching electronically between a large number of fixed antenna elements) the system assembles returns from which a three-dimensional surface can be reconstructed. Millimetre wave energy of this kind is non-ionising, and the technology does not use X-rays.
Passive millimetre wave
A passive system transmits nothing at all. It senses millimetre wave energy naturally emitted and reflected by the body and its surroundings, in roughly the same sense that a thermal camera senses emitted infrared. An object concealed under clothing alters the emission pattern arriving at the sensor, and the system detects that alteration.
Because passive systems emit nothing, they avoid the transmission question entirely, and some designs work at a stand-off distance rather than requiring the person to step into a portal, which is of real interest on crowd approaches where stopping every individual is not practical. Detection performance differs from active systems and is strongly equipment-specific, so capability should be taken from the datasheet for the model under evaluation rather than from a general description of the technology.
Backscatter X-ray, and why it is treated separately
Backscatter systems direct a low-dose X-ray beam at the body and detect the X-rays scattered back from the surface rather than those transmitted through it, which is what produces a surface representation rather than a medical-style internal one.
The point that matters for anyone specifying equipment is simple and absolute: backscatter uses ionising radiation and millimetre wave does not. That is why the use of backscatter systems in passenger screening has been restricted or withdrawn in a number of jurisdictions on radiation and privacy grounds, and why millimetre wave is now far more common for screening people. Any organisation in the Kingdom considering X-ray-based people screening must establish the applicable regulatory position for that technology, in this jurisdiction, before going any further, this is a regulatory question with a defined owner, not a technical preference.
Automatic Target Recognition: The Feature That Decided Acceptability
Automatic target recognition is the feature that made this technology deployable in public, and it is the single most misunderstood aspect of body scanning. In a Saudi context it is not a technical footnote, it is the reason the equipment can be used at all in settings where the dignity of the person being screened is a first-order consideration.
In an ATR system the reconstructed three-dimensional data is never displayed to the operator. Detection algorithms analyse it for regions departing from an expected body contour, and the operator's screen shows a generic outline or avatar (the same stylised figure for every person screened, carrying no individual physical detail whatsoever) with a box over the region where an anomaly was found. If nothing is flagged, the screen shows a clear result and nothing else.
The significance is easy to miss. The detection physics did not change when ATR was introduced; the scanner senses exactly what it sensed before. What changed is how the output is presented, and that is what made the technology acceptable for public screening. Before generic-avatar display, the privacy objection was severe enough to block deployment in several places and to force the removal of installed equipment in others. ATR did not win that argument, it removed the thing being objected to.
Anyone specifying a body scanner for a Saudi site should treat ATR-only display as a baseline requirement rather than a desirable feature, and should confirm in writing that the equipment has no operator-accessible mode capable of displaying anything other than the generic avatar. That confirmation belongs in the technical submission, not in a conversation.
Main Components of a Body Scanner
| Component | Function |
|---|---|
| Portal or panel assembly | The physical structure the person stands within or beside. Defines the scan volume and the standing position. At semi-open Saudi checkpoints the assembly's environmental rating matters more than it does in a sealed terminal. |
| Transmitter antenna array | Emits millimetre wave energy towards the body. Absent in a passive system, which transmits nothing. |
| Receiver antenna array | Captures reflected or naturally emitted energy. On many designs transmit and receive elements are combined into transceiver modules. |
| Scanning mechanism or electronic steering | Moves the array around the body, or switches electronically between many fixed elements to achieve the same angular coverage with no moving parts. Designs without moving parts have an obvious attraction where airborne dust is a constant. |
| Signal processing unit | Digitises the returns and reconstructs the three-dimensional representation of the body surface. |
| ATR software | Analyses the reconstruction for anomalies and decides what to flag. The detection behaviour of the whole system is largely determined here, not in the antenna array. |
| Operator display | Shows the generic avatar with flagged regions, or a clear indication. Must be positioned so that queuing passengers, pilgrims and passers-by cannot read it. |
| Control interface | Operator controls for initiating a scan, recording the resolution outcome and managing operating modes. Configuration access is password-protected and should be held by a named role. |
| Guidance indicators | Lights, floor footprints and on-screen prompts showing where to stand and what pose to adopt. On a lane handling many languages and many first-time users these matter far more to throughput than their simplicity suggests. |
| Environmental protection and thermal management | Enclosure sealing, filtration and cooling that keep the electronics inside their rated band. On a semi-open checkpoint in Makkah Province in summer this is a functional component rather than a detail. |
| Power supply and conditioning | Mains input with conditioning; backup arrangements follow the site's continuity requirement, which at a transport hub during a peak season is usually stricter than the default. |
How Does a Body Scanner Work Step by Step?
| Step | What happens | How it works |
|---|---|---|
| 1 | Person divests metal and pocket contents | Coins, keys, phones, belts and similar items are removed. Items left in pockets are the commonest cause of an entirely avoidable anomaly flag, and the divestment step is where lane throughput is won or lost. |
| 2 | Person enters the portal and stops | Unlike an archway, the scan requires the person to stand still within a defined position, normally marked on the floor. |
| 3 | Required pose is adopted | Typically arms raised and held slightly away from the body, so the arms do not shadow the torso and sides from the array. |
| 4 | Scan is initiated | The operator or an automatic sequence starts the scan once the person is correctly positioned. |
| 5 | Energy is transmitted towards the body | The array emits low-power millimetre wave energy. Clothing is largely transparent at these wavelengths, so the energy reaches the skin. A passive system omits this step and senses naturally emitted energy instead. |
| 6 | Reflections are produced | Energy reflects from the skin surface and from any object between the skin and the clothing, with characteristics that depend on the object's material and shape. |
| 7 | Array sweeps the body | The array rotates around the person or steers electronically, so reflections are captured from many angles rather than from one. |
| 8 | Returns are captured and digitised | Receiver antennas collect the reflections; the signal processing unit converts them into data carrying position and intensity information. |
| 9 | Three-dimensional reconstruction | The processing unit assembles the returns into a representation of the body surface and of anything sitting on it. |
| 10 | ATR analyses for anomalies | Detection algorithms compare the reconstruction against an expected body contour and flag regions that depart from it. |
| 11 | Generic avatar is displayed | The operator sees a standard outline figure with a box over each flagged region, or a clear result. No body image is displayed at any point in the sequence. |
| 12 | Targeted resolution or release | If a region is flagged, the operator resolves that location only, commonly with a handheld detector or a localised physical check carried out under the site's defined procedure. If nothing is flagged, the person proceeds. |
Steps 1 and 12 are the ones that decide whether a lane flows. Steps 5 to 11 happen in seconds and are the same at every site in the world; the divestment procedure in front of the portal and the resolution procedure behind it are local, are designed by the operating organisation, and are where almost every throughput problem originates.
What a Body Scanner Indicates, and What It Does Not
Metallic and non-metallic anomalies
The advantage over an archway is that the scanner is not restricted to conductive metal. Because it responds to what is physically present between the skin and the clothing, it can indicate anomalies that are metallic and non-metallic alike: and the non-metallic case is precisely where a walk-through detector has nothing at all to contribute. That is the operational reason a scanner appears in a lane that already has an archway in it.
An anomaly is not a threat
The system flags a region that does not look like body surface. It does not establish what is there. That is done by the operator at the resolution stage, through a targeted check. No screening device of this type detects any specific threat with certainty, and a tender or a datasheet implying otherwise should be challenged rather than accepted.
It also screens the body surface only, not the body's interior and not carried bags. Bag contents are the job of the X-ray scanner on the parallel belt. Neither device substitutes for the other, and a checkpoint that removes one because it has the other has reduced its coverage rather than consolidated it.
Where nuisance flags come from
Body scanners flag ordinary things constantly, and operators who have not been told to expect this lose confidence in the equipment within weeks. The usual sources are thick clothing folds and bunched fabric at the waist or shoulders, heavy seams, sweat, bandages, prosthetics, orthopaedic supports, insulin pumps and other worn medical devices, and items simply left in a pocket. None of these is a threat. All of them can legitimately produce a region that does not match an expected body contour, because none of them is body contour.
Two operational rules follow. Resolution should be targeted at the flagged region rather than expanded into a general search, and the flagged-anomaly rate should be monitored as a number. A rate drifting upward at a particular lane almost always points at a divestment procedure that has quietly stopped being enforced, not at a scanner that has become more sensitive.
Throughput: Why a Body Scanner Is Rarely Primary Screening
This is the operational reality that specifications underestimate most often, and in the Kingdom it drives checkpoint design harder than any detection parameter does.
A walk-through metal detector screens a person at walking pace, nobody stops. A body scanner requires the person to stop, step into a marked position, adopt a pose, hold it while the scan completes, step out and wait for a result. That is several times longer per person than an archway pass. Pose compliance is also hard to achieve consistently across a mixed public queue, in several languages, with luggage, elderly travellers and children in the picture, and at a pilgrimage checkpoint all of those conditions apply at once.
So a body scanner is almost never primary screening for everyone. It is used as selective or secondary screening: every person passes the archway, and a proportion (those who alarm, those selected under a defined procedure, or those in a defined screening category) are directed to the scanner. An organisation that specifies a scanner as the universal first line will either need a very large number of units or will create a queue that becomes a safety and crowd-management problem in its own right. At the volumes handled around Makkah and Madinah, that second outcome is not a theoretical risk.
Screening at Pilgrimage Scale: Makkah, Madinah and the Kingdom's Airports
Hajj and Umrah produce passenger and pedestrian volumes with very few parallels anywhere, concentrated into defined periods, defined corridors and defined arrival points. Screening on that scale is a different discipline from screening at a government building, and it is the defining application for this equipment in Saudi Arabia. The gateways at Jeddah and Madinah, the approaches and transport interchanges around the two holy cities, and the main terminals at Riyadh and Dammam all share the same underlying problem: detection capability has to be delivered without the screening process itself becoming the constraint on movement.
Dignity, privacy and the screening conversation
This is where the ATR point stops being technical. A screening method that produced an image of a person's body would not be acceptable for mass screening in this setting, and the generic-avatar display is the specific design decision that resolves that. An organisation deploying scanners on a pilgrim route should be able to state plainly, in Arabic and in English, on signage at the lane and in staff briefing material, that the operator sees a stylised outline identical for every person and not an image of the individual, and should be able to demonstrate that on request rather than merely assert it.
Screening staffing arrangements, the availability of an alternative screening method, and the manner in which a flagged region is resolved all belong in the same documented procedure. The practical test is whether a person who is uncomfortable can raise that without having to argue, and whether staff have been trained to respond to it as a routine request rather than as an objection.
Sequencing a scanner into a very high-volume lane
At pilgrimage volumes the scanner cannot sit in the main flow. The workable pattern is an archway handling the full stream at walking pace, with a defined diversion to one or more scanners operating in parallel, and a hold area sized so that a person waiting for resolution does not stall the lane behind them. The number of scanners follows from the expected diversion rate and the scan-plus-resolution time, not from the headline passenger figure.
Two things are worth planning explicitly. The first is what happens when a scanner is taken out of service mid-peak: a lane with no fallback procedure will simply stop. The second is that equipment should be fully exercised before a season begins rather than at the start of it, including the functional test routine, the operator display, the guidance indicators and the resolution procedure, with the people who will actually run the lane.
Declared medical devices, prosthetics and mobility aids
Across a very large screened population, worn medical devices, prosthetics, orthopaedic supports and mobility aids are not edge cases, they appear continuously, and a significant share of pilgrims are elderly. A procedure that treats each one as an exception will generate delay and distress at volume.
What works is a defined route: the person can declare the device before the scan, the declaration is handled discreetly away from the queue, resolution is targeted and explained, and an alternative screening method is available without the person needing to request it twice. Staff should be able to say clearly that a flagged region means the operator needs to check that location and nothing more. Anyone with an implanted medical device or a specific medical concern should inform screening staff and follow the advice of their doctor and the guidance supplied with their device, the screening organisation's job is to make that easy to do, not to assess it.
How Saudi Site Conditions Affect a Body Scanner
A body scanner is normally thought of as indoor equipment, and inside a sealed terminal it largely is. A great many Saudi screening positions are not that. Entrances to government compounds, stadium and venue perimeters, transport interchanges, industrial site gatehouses and seasonal screening points are frequently semi-open, covered but not conditioned, with air, dust and heat moving freely through them. That is where the environmental questions become real.
Airborne dust at semi-open checkpoints
Fine wind-borne dust is the dominant environmental stressor for electronics in this region, and it reaches a semi-open screening position easily. It settles on and inside the enclosure, where it insulates components that need to shed heat; it loads ventilation paths and any filter media, so the thermal design quietly stops holding; and it accumulates on the operator display and on any optical guidance device, degrading what staff can actually see. None of this is dramatic on any one day, which is exactly why it goes unmanaged until a fault appears.
The responses are straightforward and mostly need deciding before installation. Specify an enclosure and filtration arrangement appropriate to a dusty semi-open environment rather than to a conditioned terminal; prefer designs without exposed moving scanning mechanisms where the site conditions allow; place the portal out of the direct line of wind-blown dust where the layout permits; and treat filter and surface cleaning as a scheduled task with a named owner, not as something done when somebody notices.
Ambient heat and the equipment enclosure
Summer shade temperatures across much of the Kingdom sit above 45 °C, and inland sites regularly approach or pass 50 °C. Inside an enclosure at a semi-open checkpoint the air around the electronics is hotter again. Every manufacturer states a permissible operating temperature and humidity band for the equipment, and those bands are specifications rather than guidance, a scanner operated outside them may shut down, may behave unpredictably, or may simply have a shorter service life than the project assumed.
This has to be handled at design stage, because it is a layout and services question rather than an equipment question. Establish the actual temperature at the proposed position during the hot part of the day rather than relying on the building's design figure; provide conditioning or shading where the band cannot otherwise be held; keep the enclosure out of direct solar gain; and verify during commissioning in realistic conditions. A scanner commissioned at eight in the morning in February has not been tested.
Coastal air on the Red Sea and the Gulf
Jeddah and Yanbu on the Red Sea, and Jubail, Dammam and Al Khobar on the Gulf, add salt-laden humidity to the picture. Salt is hygroscopic: it draws moisture from humid air and holds a conductive film against metal surfaces long after any visible wetting has gone. On screening equipment the damage shows up first at electrical terminations, connectors and exposed fixings, and it shows up as intermittent faults long before anything looks visibly wrong.
For a coastal screening position that means corrosion protection and sealing are specification items: enclosure material and finish chosen for the exposure, fixings of an appropriate grade, sealed cable entries, and a deliberate internal inspection of terminations at service visits rather than a visual check from outside. Where a screening point is genuinely exposed to coastal air, this is worth confirming with the manufacturer for the specific model rather than assuming the standard build covers it.
Setting verification intervals from conditions, not a calendar
A generic service schedule fits this environment poorly, because the two variables that actually drive drift are throughput and exposure, and both vary enormously between sites in the same province. A screening position inside a conditioned ministry building in Riyadh and one at a semi-open seasonal checkpoint in Makkah Province are not on the same curve.
| Screening position | Dominant stress | Attention pattern typically suited to it |
|---|---|---|
| Conditioned terminal or building interior, steady throughput | Throughput and operator drift rather than environment | Functional test routine at the manufacturer's stated interval, with operator refresher training and a review of the flagged-anomaly rate at each service. |
| Semi-open checkpoint, inland, exposed to open desert | Airborne dust plus thermal load inside the enclosure | Shorter intervals. Filter and vent cleaning, enclosure interior inspection and display cleaning treated as scheduled items in their own right, well ahead of the main service. |
| Coastal position at a Red Sea or Gulf location | Salt-laden humidity in addition to dust | Internal inspection of terminations, connectors and fixings at every visit, with early attention to any coating or seal damage before it spreads. |
| Seasonal or event-driven screening point | Long idle periods followed by sustained peak load | A pre-season commissioning check that fully exercises the equipment, the functional test routine, the guidance indicators and the resolution procedure before the peak, not a visit on a fixed calendar date. |
| Position adjacent to construction or active earthworks | Very high particulate load for a bounded period | Temporary short-interval cleaning for the duration of the works, reverting afterwards. Common where a facility opens before its surroundings are complete. |
After any significant dust event, an additional inspection is justified regardless of where the site sits in its schedule. Filters, enclosure surfaces and the operator display are the items to check first, and all three take minutes.
Where Body Scanners Are Used in Saudi Arabia
- Airports and aviation screening: the principal application. Selected passengers are directed to a scanner alongside the archway and baggage X-ray at the Kingdom's main gateways, including the terminals serving Jeddah, Madinah, Riyadh and Dammam, with the pilgrim traffic through the Red Sea and Madinah gateways creating a throughput profile that few airports elsewhere have to plan for.
- Pilgrim transport and approach screening: screening positions on routes and at interchanges serving Makkah and Madinah, where the scanner sits as a selective layer behind archway screening and where crowd movement, not detection capability, sets the design constraint.
- Government, ministry and diplomatic facilities: controlled entry where the threat assessment extends beyond metallic items, typically at designated entrances rather than at every door.
- Critical infrastructure and energy facilities: personnel and contractor screening at process-area and plant entrances, including the industrial cities of Jubail and Yanbu, where a defined screening category exists for certain roles or certain areas rather than for the whole workforce.
- Ports and customs facilities: selective personnel screening at Jeddah Islamic Port and King Abdulaziz Port, integrated into a gate process that also handles vehicles, documents and cargo.
- Prisons and correctional facilities: visitor and inmate screening, where non-metallic contraband is the central concern and the archway alone is known to be insufficient.
- Courts, large venues and major events: enhanced screening at designated entrances, almost always as a secondary position rather than as a lane everyone passes through.
- High-value industrial and processing operations: exit screening against theft of small high-value material, under a defined and declared procedure agreed with the workforce.
Across all of these the design pattern is the same regardless of sector: the scanner sits behind the archway, never in front of it. TimeWatch supplies inspection and screening equipment and works with organisations in the Kingdom on checkpoint layout and on the equipment surrounding a scanning position, since a scanner's usefulness depends heavily on what sits in the lane before and after it. TimeWatch is represented in Saudi Arabia through Shuruq Saudi as authorised national distributor.
Integration With Other Screening Layers
A body scanner is a layer, not a checkpoint. In practice it is deployed with:

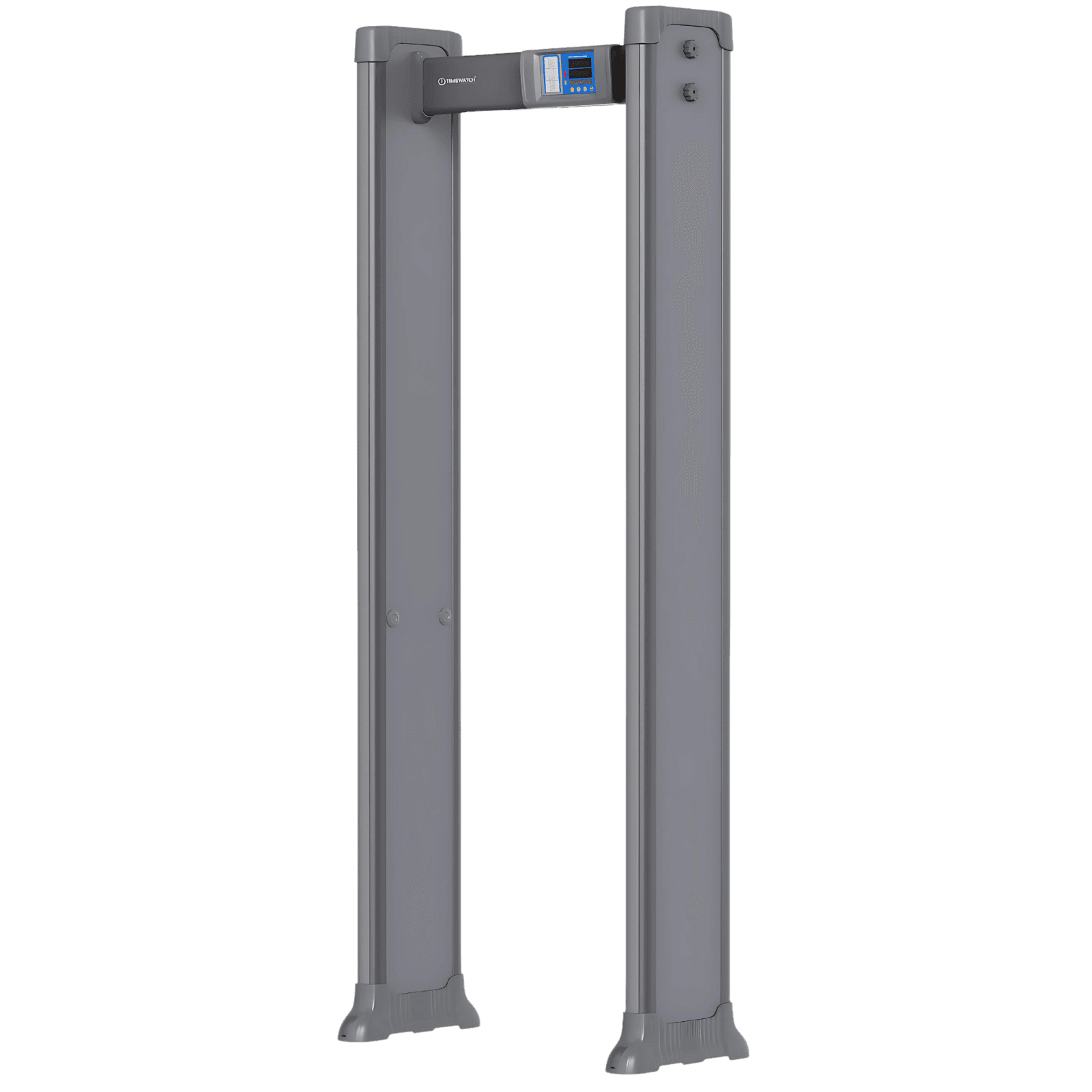

- Walk-through metal detectors: the primary screening line. Everyone passes the archway and a proportion is diverted to the scanner, which is the division of labour that makes the lane work at all.

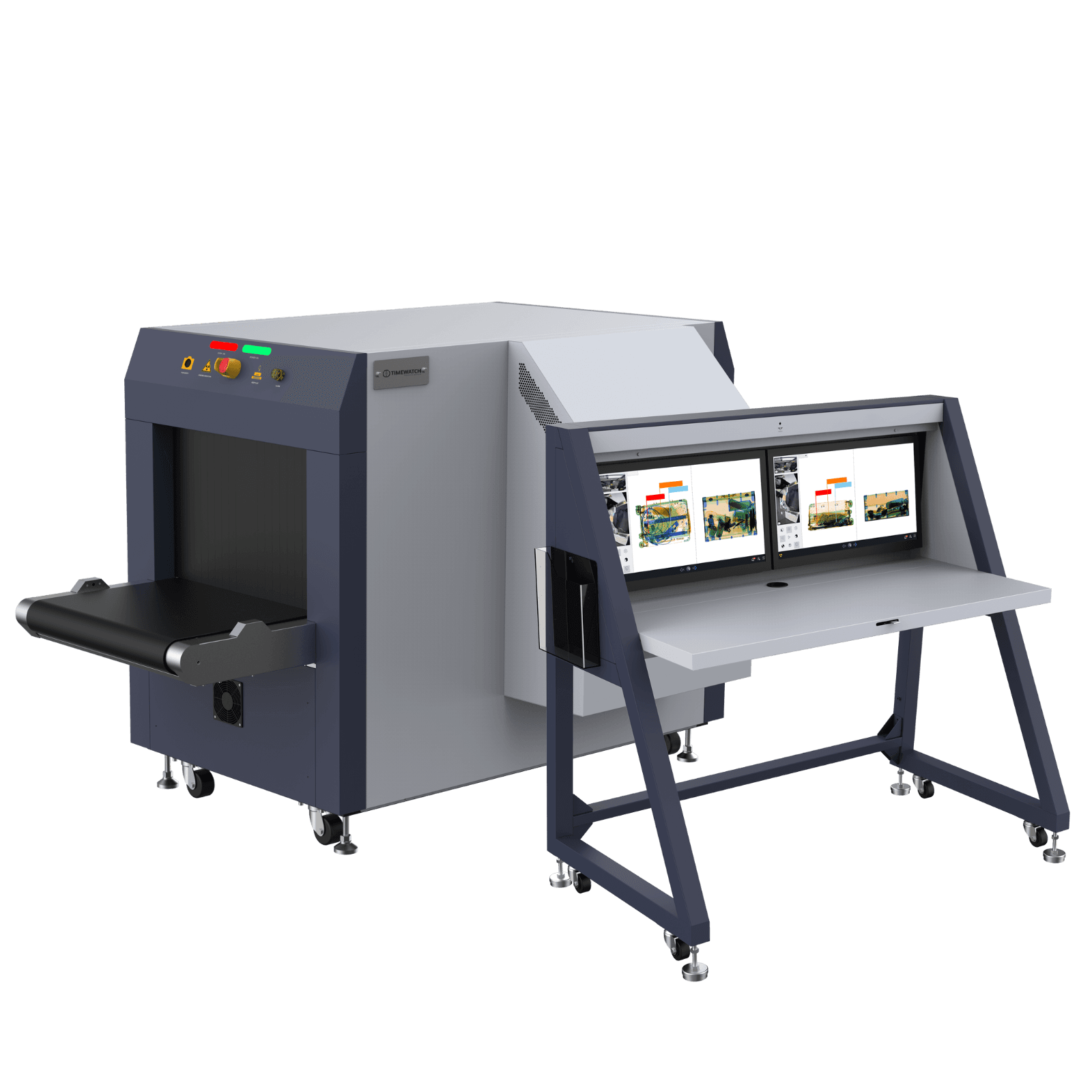

- X-ray baggage scanners: carried bags and trays run on the parallel belt. The body scanner has nothing to say about bag contents, and the archway has nothing to say about either.
- Handheld metal detectors: used to resolve a flagged region, particularly where the anomaly is likely to be metallic.
- Trace detection equipment: where the threat assessment includes explosive residue, swab-based trace detection covers ground that neither the archway nor the scanner addresses.
- CCTV: coverage of the screening position for incident review, deliberately positioned so that operator displays are never in shot. This is a privacy requirement as much as a camera-siting one.
- Queue and crowd management: barriers, divestment tables, signage in Arabic and English and a defined hold area, without which a single flagged anomaly stalls the lane.
- Access control and visitor management: at government and corporate sites the screening position usually sits inside a wider entry process that also establishes who the person is and whether they are expected.
Installation, Operation and Routine Checks at Saudi Sites
- Floor area and standing position: the portal needs clear space plus a defined approach, exit and hold area. Scanners are frequently forced into a footprint that was planned for an archway, which does not work and cannot be fixed afterwards by procedure.
- Operator display placement: the screen must not be visible to the queue or to passers-by. This is a layout requirement, not a preference, and it should be checked from standing eye level in the actual queue position rather than from the operator's chair.
- Environmental conditions: temperature, humidity and particulate limits are specified per model and matter considerably more here than for an archway. Confirm the band and confirm the position can hold it in July.
- Interference and separation: clearances from other equipment and from reflective structures follow the manufacturer's installation guidance. Screening lanes are crowded with metal, and this is not a clearance to estimate.
- Regulatory position: applicable approvals, radio emission requirements and, for any X-ray-based equipment, radiation regulatory requirements must be confirmed for this jurisdiction and for the specific equipment before installation rather than during commissioning.
- Operator training: pose instruction, anomaly resolution, handling of declared medical devices, and the ability to explain the privacy position plainly in Arabic and English. Weak training shows up immediately as low throughput and as complaints.
- Routine functional checks: a defined test procedure taken from the manufacturer's documentation, run and recorded on a schedule. A scanner producing no flags at all is not necessarily a scanner with nothing to flag.
- Cleaning and enclosure attention: filters, vents, enclosure interior and display, at intervals set from the site conditions as described above.
- Privacy governance: a documented position on which display modes the equipment supports and which are enabled, whether scan data is retained and for how long, who may access the operator position, and what the alternative procedure is for a person who declines. Writing that down before anyone asks is considerably easier than assembling it afterwards.
- Continuity: what the lane does when a scanner is unavailable, documented and rehearsed. At a seasonal peak this is the difference between a slower lane and a stopped one.
Regulatory and Standards Context in Saudi Arabia
Security and life-safety installations in the Kingdom sit within the framework administered by the General Directorate of Civil Defense, which is the authority concerned with fire and life-safety arrangements on occupied premises. For a screening position the relevant questions are where the lane sits in relation to escape routes, what happens to the screening arrangement during an evacuation, and whether equipment, queuing and hold areas obstruct egress. Those are matters to settle with that framework in view from the design stage rather than at handover.
On the equipment side, specifications in the Kingdom commonly reference standards published by SASO (the Saudi Standards, Metrology and Quality Organization) and by GSO (the GCC Standardization Organization), together with the conformity and product-registration arrangements SASO administers for goods placed on the Saudi market. Equipment that transmits radio energy also raises frequency and emission questions for the relevant communications authority, and any X-ray-based people-screening equipment raises a separate radiation regulatory question with its own owner. Major clients (government bodies, airport and port operators, energy facilities and large developers) publish their own technical specifications on top of all of this, and those frequently go further than the general framework.
Two points should be stated plainly:
- Nothing on this page should be read as a statement that any product is approved, certified or compliant under any of these frameworks. This section is context, not a claim. Conformity status is a property of a specific model and a specific supply, evidenced by documentation for that supply.
- Current requirements must be confirmed with the relevant authority for the specific project. Requirements change over time and vary by facility type. The position applying to an airport terminal, a correctional facility, a ministry building and a seasonal pilgrim screening point is not the same position, and the only reliable source is the authority and the client specification for that project at that time.
Radiation and Privacy: What This Page Will and Will Not Claim
These two questions account for most of the public interest in this technology, and both deserve a precise answer rather than a reassuring one. The distinction matters: a precise answer survives being checked, and a reassuring one does not.
Radiation
Millimetre wave scanners transmit non-ionising radio frequency energy at low power. They do not use X-rays and do not emit ionising radiation. Backscatter X-ray systems are a different technology and do use ionising radiation, which is precisely why their use in passenger screening has been restricted or withdrawn in several jurisdictions. Treating the two as one category is the commonest error in public discussion of body scanner safety, and it is worth correcting every time it appears in a brief or a tender.
Manufacturers publish safety positions for their specific equipment, and national regulators publish guidance on the technologies permitted in their jurisdiction. Those two sources (not a general article, including this one) are what an organisation should rely on. Any organisation deploying a body scanner in the Kingdom must confirm the applicable regulatory position for its own jurisdiction and equipment type and keep that documentation available. That obligation sits with the deploying organisation and does not transfer to a supplier or an integrator.
Anyone with a specific medical concern, an implanted device such as a pacemaker or defibrillator, an insulin pump, or a condition affected by screening should inform screening staff before the scan and follow their doctor's advice together with the guidance supplied with their device. Screening procedures ordinarily provide an alternative method, and staff should be trained to offer it without the person having to argue for it.
Privacy, display mode and data handling
On a system operating with automatic target recognition, the operator does not see an image of the person's body. The display shows a generic outline identical for every person screened, with a box marking any region flagged for resolution. This is the standard display mode for modern passenger screening equipment, and it is what an organisation should require in its specification and be able to demonstrate on request.
An organisation operating a scanner should also hold a documented position on which display modes the equipment supports and which are enabled, whether scan data is retained and for how long, who can access the operator position and under what authority, and what the alternative procedure is for a person who declines. At a site screening large numbers of members of the public, that document is the thing that answers a question from a regulator, a journalist or a pilgrim without anyone having to improvise.
Body Scanner vs Walk-Through Detector vs Handheld Detector
| Walk-through metal detector | Millimetre wave body scanner | Handheld metal detector | |
|---|---|---|---|
| What it indicates | Conductive metal on or carried by the person | Surface anomalies under clothing, metallic and non-metallic | Conductive metal, at close range |
| Radiation type | Low-intensity electromagnetic field; non-ionising, no X-rays | Low-power millimetre wave; non-ionising, no X-rays. Backscatter X-ray systems, by contrast, use ionising radiation | Low-intensity electromagnetic field; non-ionising |
| Throughput | High, walking pace, no stopping | Low, the person stops, poses and waits for the scan and the result | Low, manual sweep of one person at a time |
| Privacy handling | No imaging of any kind; an audible alarm and a zone indicator | ATR generic avatar with flagged regions; no body image shown to the operator | No imaging; audible and tactile response |
| Typical role in a Saudi lane | Primary screening of everyone, including at pilgrimage volumes | Selective or secondary screening of a defined proportion | Resolution of an alarm or a flagged region |
These are complementary layers rather than competing options. The archway provides throughput, the scanner reaches non-metallic concealment, and the handheld resolves precisely where the other two only indicate. Adding a body scanner does not remove the need for the archway or for the baggage scanner, and a checkpoint that treats it as a replacement has made itself weaker rather than stronger.
Frequently Asked Questions
How does an airport body scanner work?
An active millimetre wave scanner transmits low-power, non-ionising radio energy towards the person standing in the portal. Clothing is largely transparent at these wavelengths, so the energy reflects off the skin and off any object concealed underneath. Receiver antennas capture the reflections as the array sweeps around the body, and a processing unit reconstructs a three-dimensional representation of the body surface. Automatic target recognition software analyses that reconstruction for anomalies and displays a generic outline with a box over any flagged region.
Do body scanners use X-rays, and are they safe?
Millimetre wave scanners transmit non-ionising radio frequency energy at low power and do not use X-rays or emit ionising radiation. Backscatter X-ray scanners are a different technology and do use ionising radiation, which is why their use in passenger screening has been restricted or withdrawn in several jurisdictions. Safety positions are published by manufacturers for their specific equipment and by national regulators in their guidance, and an organisation deploying a scanner must confirm the applicable regulatory position for its jurisdiction and equipment type.
Does the operator see an image of your body?
Not on a system operating with automatic target recognition, which is the standard display mode for modern passenger screening equipment. The reconstructed three-dimensional data is analysed by software and is never shown to the operator. What the operator sees is a generic outline identical for every person screened, with a box marking any region flagged for resolution, or a clear result if nothing is flagged.
What is automatic target recognition in a body scanner?
Automatic target recognition is the software layer that analyses the scanner's three-dimensional reconstruction for regions departing from an expected body contour and presents the result as a generic avatar with flagged regions rather than as an image of the person. The detection physics did not change when it was introduced; only the way the output is presented changed. That change is what made the technology acceptable for public screening, and an organisation specifying a scanner should require ATR-only display.
Can a body scanner detect non-metallic items?
It can indicate anomalies that are non-metallic as well as metallic, which is the main advantage over a walk-through metal detector that responds only to conductive metal. What the system actually reports is a region that does not match an expected body contour. It does not identify what the object is, and no screening device of this type detects any specific threat with certainty, the operator establishes what is present during targeted resolution.
Why is a body scanner not used on every passenger at a busy checkpoint?
Because of throughput. An archway screens people at walking pace without anyone stopping, while a scanner requires the person to stop, take a position, hold a pose, wait for the scan and wait for the result. That is several times longer per person, and pose compliance is difficult across a mixed public queue. A scanner is therefore used as selective or secondary screening behind the archway, and a checkpoint that routed everyone through one would need a great many units or would create a queue that became its own problem.
How are body scanners used for pilgrim screening at Makkah and Madinah?
As a selective layer behind archway screening rather than as the main line, because the volumes during Hajj and Umrah are far beyond what a stop-and-pose device can carry on its own. Everyone passes the archway at walking pace and a defined proportion is diverted to one or more scanners operating in parallel, with a hold area sized so that resolving one person does not stall the lane. Equipment should be fully exercised before a season begins, and the privacy position and the alternative screening method should be documented and explained in Arabic and English at the lane.
Do dust and summer heat in Saudi Arabia affect a body scanner?
They affect it wherever the screening position is semi-open rather than inside a conditioned building, which many Saudi positions are. Fine dust settles inside the enclosure where it traps heat, loads ventilation and filter media, and accumulates on the operator display. Summer ambient above 45 °C can push the enclosure beyond the manufacturer's stated operating band. Both are design-stage questions: specify filtration and conditioning for the actual position, verify the temperature there during the hot part of the day, and set cleaning intervals from the site conditions rather than from a generic calendar.
Why did the scanner flag an area when I was not carrying anything?
Because the system flags anomalies, not threats. Thick clothing folds, bunched fabric, heavy seams, sweat, bandages, prosthetics, orthopaedic supports, worn medical devices and items left in a pocket can all produce a region that does not match an expected body contour. A flagged region means only that the operator needs to check that location, and resolution should be targeted at that area rather than expanded into a general search.
What should someone with a pacemaker, an insulin pump or a prosthetic do before being scanned?
Inform screening staff before the scan, and follow their doctor's advice together with the guidance supplied with the device. Screening procedures ordinarily provide an alternative screening method, and staff should be trained to offer it without the person having to argue for it. At sites screening very large numbers of people, the declaration should be handled discreetly away from the queue under a defined procedure, because worn medical devices and mobility aids appear continuously at that scale rather than occasionally.
Which authorities and standards are relevant to body scanners in Saudi Arabia?
Security and life-safety arrangements fall within the framework of the General Directorate of Civil Defense, and equipment specifications commonly reference standards published by SASO, the Saudi Standards, Metrology and Quality Organization, and by GSO, the GCC Standardization Organization. Radio emission and, for any X-ray-based equipment, radiation regulatory requirements sit with their own authorities. Major clients add their own technical specifications on top. Because requirements change and vary by facility type, the current position must be confirmed with the relevant authority for the specific project.
