How Does an Attendance Machine Work?
What Is an Attendance Machine?
The device is also called a biometric attendance system, a time attendance terminal, a punching machine or an access terminal. Whatever it is called, it performs one narrow job very quickly: establish who this person is, and note the time. Everything that turns those events into payable days happens afterwards, in software.
What varies across the Kingdom is not the mechanism but the conditions it has to work in. A terminal inside an air-conditioned ministry building in Riyadh and a terminal at a contractor turnstile on an Eastern Province plant gate run the same algorithm on the same kind of sensor. One of them is reading clean, dry fingers in stable light. The other is reading hands that have been in gloves, dust and sunlight since dawn, through a platen that has been exposed to both. That difference, not the specification sheet, decides which method a site should actually fit.
How Does an Attendance Machine Work?
An attendance machine works in five stages. The sensor captures a sample, an image of a fingerprint, a face, the vein pattern of a palm. Software extracts the distinctive features from that sample and discards the rest. It compares the resulting template against the templates stored at enrollment. If the similarity score passes the configured threshold, the device records an event containing the user ID, timestamp, direction and device identifier. That event is then transferred to the attendance software over the network.
Capture, extract, compare, record, transfer. On a modern terminal the whole sequence completes in well under a second. The engineering question on a Saudi site is almost never whether the sequence works, it is whether stage one still produces a usable sample at two in the afternoon in July.
Main Components of an Attendance Machine
| Component | Function |
|---|---|
| Biometric sensor | Captures the raw sample: an optical or capacitive sensor for fingerprints, a camera pair with infrared illumination for face, a near-infrared sensor for palm vein, a dedicated camera for iris. |
| Card reader | Reads an RFID or Mifare card, either as the primary credential or as a second factor alongside a biometric. |
| Processor and matching engine | Runs feature extraction and template matching on the terminal itself, so identification does not depend on a live server connection. |
| Template storage | On-device memory holding enrolled templates. Its capacity sets how many users one terminal can serve. |
| Transaction log memory | Holds attendance events locally until they are transferred, so punches survive a network outage. |
| Real-time clock | Maintains the timestamp. Every downstream calculation rests on it, which is why time synchronisation across sites matters. |
| Display and keypad | Confirms the punch, accepts a PIN, and lets the user select in, out or a reason code. Dual-language display is worth specifying for a multi-national workforce. |
| Communication interface | TCP/IP Ethernet, Wi-Fi, 4G, RS-485 or USB, carrying events to the software and configuration back to the device. |
| Power supply and backup | Mains adaptor or Power over Ethernet, usually with a backup battery so the terminal survives short interruptions. |
| Access control relay | An optional output that releases a door lock, so one terminal serves both attendance and entry. |
| Enclosure and environmental rating | The housing, its ingress protection rating and its stated operating temperature range. On a semi-outdoor Saudi mounting these are functional components rather than catalogue detail. |
How Does an Attendance Machine Work Step by Step?
| Step | What happens | How it works |
|---|---|---|
| 1 | Enrollment, once per person | The user presents the credential several times. The device captures samples, extracts features and builds a reference template, stored on the terminal and usually on the server as well. |
| 2 | User presents the credential | A finger on the sensor, a face in front of the camera, a palm above the reader, or a card at the reader. |
| 3 | Sample is captured | The sensor produces a raw image or signal. Face terminals usually capture visible and infrared frames together so recognition survives poor light. |
| 4 | Liveness is checked | Anti-spoofing logic assesses whether this is a live finger or face rather than a photograph, mask or lifted print. Implementation varies by device. |
| 5 | Features are extracted | The algorithm locates the distinctive characteristics (ridge endings and bifurcations for fingerprints, geometric relationships for faces) and encodes them as a numeric template. The original image is discarded. |
| 6 | Template is matched | The extracted template is compared against stored templates and a similarity score is produced. |
| 7 | Decision against threshold | If the score exceeds the configured threshold the person is identified. If not, the device rejects the attempt and prompts a retry. |
| 8 | Attendance event is written | User ID, date, time, direction, device ID and verification method are recorded in the terminal's transaction log. |
| 9 | Feedback is given | The display shows the name or ID, a beep or voice prompt confirms, and any linked door relay is released. |
| 10 | Event is transferred | The device pushes the record to the server, or the server polls the device. If the link is down the events queue locally and upload when it returns. |
| 11 | Software applies the rules | Shift assignment, grace periods, late marks, half-day thresholds, overtime and leave convert raw punches into an attendance status. |
| 12 | Reports and payroll output | Registers, exception lists and payable-day data are produced for the pay cycle. |
How Biometric Identification Actually Works
Enrollment: building the reference template
Enrollment is the single most consequential step in a biometric deployment, and the one most often rushed. The terminal takes several samples of the same finger or face and builds one reference template from them. A template built from poor samples (a partly placed finger, a face captured against a bright window) produces a user who is rejected repeatedly for months afterwards, and no amount of configuration fixes it later.
Two practices save most of the subsequent support load. Enrol at least two fingers per person, so a cut, a bandage or a dressing does not lock somebody out of their own shift. And enrol in conditions close to those the person will actually use: a worker enrolled with freshly washed hands in an office, who then presents a dusty hand at a site gate, has effectively been enrolled for a different sensor.
Why no fingerprint image is stored
This is the most common misunderstanding about biometric attendance, and the answer is worth stating plainly: the terminal does not keep a picture of a fingerprint.
During feature extraction the algorithm identifies specific characteristics, for fingerprints, the minutiae points where ridges end or split, together with their relative positions and orientations. These are encoded as a set of numbers, and that numeric template is what is stored. The original image is discarded.
The process is deliberately one-way. A template holds enough information to recognise the same finger again, but not enough to reconstruct the original image from it. The same principle applies to face and palm recognition. TimeWatch terminals additionally secure these templates with AES-128 encryption on the device and in transit, so the stored data is encrypted as well as non-reversible. Explaining this to a workforce before deployment, rather than after the first objection, removes most of the resistance these systems meet.
Matching: verification versus identification
There are two matching modes, and they behave very differently as headcount grows:
- 1:1 verification: the user first identifies themselves with a card or PIN, then presents the biometric. The device compares against one stored template. Speed and accuracy stay constant however many people are enrolled.
- 1:N identification: the user presents only the biometric and the device searches every enrolled template. More convenient, but the search space grows with headcount and the matching becomes less discriminating as it does.
On a plant or construction site with thousands of enrolled workers, 1:N on a single terminal is usually the wrong answer. Large sites either move to 1:1 with a card, or split the population across terminals by gate, contractor or department so no device carries the whole database.
Thresholds, false accepts and false rejects
Biometric matching produces a similarity score, not a yes or a no. The threshold decides where the line falls, and moving it trades one error against the other:
- False Acceptance Rate (FAR): how often the wrong person is accepted. Lowering it means raising the threshold.
- False Rejection Rate (FRR): how often the right person is rejected. Lowering it means relaxing the threshold.
The two move in opposite directions and cannot both be minimised. A restricted process area is tuned for low FAR and accepts that legitimate users will occasionally need a second attempt. A gate handling several hundred workers at a shift change is usually tuned the other way, because a queue in direct sun cannot absorb repeated retries. This is a site decision, not a product specification, and it is why relaxing the threshold to silence complaints about a dusty sensor is the wrong fix. It raises FAR for everyone to compensate for a problem that a cloth and a re-enrollment would have solved.

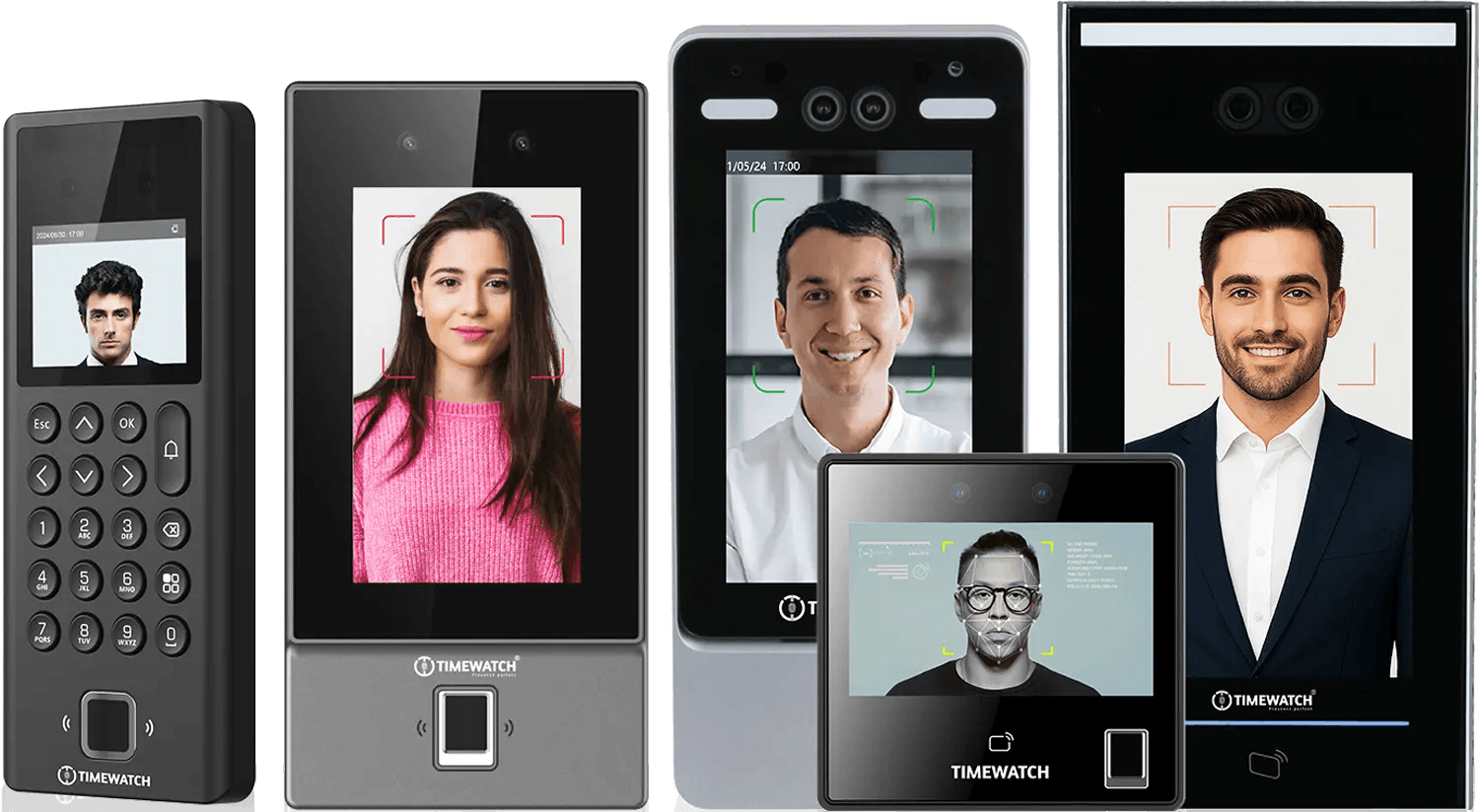

Choosing the Capture Method for a Saudi Workforce
| Method | How it identifies | Typically suited to |
|---|---|---|
| Fingerprint | Optical or capacitive sensor reads ridge patterns and extracts minutiae points | Offices, ministry and administrative buildings, retail and clinical back-office areas, indoor populations with clean, uncovered hands |
| Face recognition | Camera pair with infrared captures facial geometry, contactless and functional in low light | Higher-footfall entrances, hygiene-sensitive settings, and workforces whose hands are unsuitable for fingerprint capture |
| Palm vein | Near-infrared reads the subsurface vein pattern of the palm | Manual and industrial workforces where surface ridge detail is worn or contaminated |
| Iris | Dedicated camera reads the iris pattern at short range, fully contactless | Clinical areas and process environments where staff wear gloves, masks and protective equipment |
| Card / RFID | Reads an identifier from a Mifare or proximity card | Large contractor and temporary populations, and as a second factor in 1:1 verification |
| Multi-modal | Combines several of the above in one terminal | Mixed workforces where no single method serves everyone, the common case on Saudi industrial sites |
Workforces across the Kingdom's industrial, construction and energy sectors are large and highly multi-national, and they are not homogeneous in the way a single capture method assumes. One site may hold office staff, process operators, maintenance crews and several contractor populations who rotate on and off the project. Each of those groups presents a different hand to the same sensor. The practical consequence is that a site standardising on one method for everyone will find a proportion of its people simply do not read reliably, and that proportion is highest exactly where attendance records matter most, among manual and outdoor workers whose hours drive both payroll and site headcount.
This is a recognised limitation of fingerprint biometrics rather than a device fault. The answer is not a different fingerprint sensor; it is to plan from the start for face, palm or card as the route for users the primary method does not serve, and to decide that at design stage rather than during the first month of complaints.
How Heat and Dust Affect Attendance Terminals in Saudi Arabia
Attendance terminals are often treated as indoor equipment that happens to be mounted near a door. In the Kingdom a large share of them are not: they sit at site gates, in turnstile canopies, in porta-cabin entrances, at accommodation blocks and on plant perimeters, where summer shade temperatures sit above 45 °C, inland locations approach or pass 50 °C, and airborne dust is continuous rather than occasional. Each of those conditions attacks a different part of the capture chain.
Why fingerprint reliability falls on outdoor and manual workforces
A fingerprint sensor does not read a finger; it reads the optical or capacitive contrast between ridge and valley across a small contact patch. Four things in this environment degrade that contrast, and they compound:
- Dust on the platen. A film of fine particulate on an optical sensor window scatters the illumination and blurs ridge definition, so the extracted template drifts away from the enrolled one and scores fall. This is the single most frequent cause of read rates that worsen gradually over weeks, and the fix is cleaning rather than reconfiguration.
- Sweat and surface moisture. A wet or sweating finger floods the valleys and the sensor sees a flat, low-contrast image. This is routine for anyone arriving at a terminal after working outdoors, and it is worse on the Gulf and Red Sea coasts, where humidity keeps hands damp for much of the year.
- Very dry skin. The opposite problem, and the dominant one inland. Low ambient humidity at Riyadh, Tabuk or across the interior dries the skin until the ridges make poor contact, particularly for older workers and for anyone handling cement, sand or solvents.
- Genuinely worn ridge detail. Sustained manual work abrades the fingertip. For a proportion of construction, quarry and maintenance workers there is not enough ridge structure left to extract a stable template at all.
Taken together, these are why a fingerprint deployment that performs well in an office building reports a persistent failure-to-read population on an industrial or construction site. The practical consequence is straightforward: for manual and outdoor workforces, fingerprint is often not the appropriate primary method, and face, palm vein or card should be specified as the route for those users from the outset.

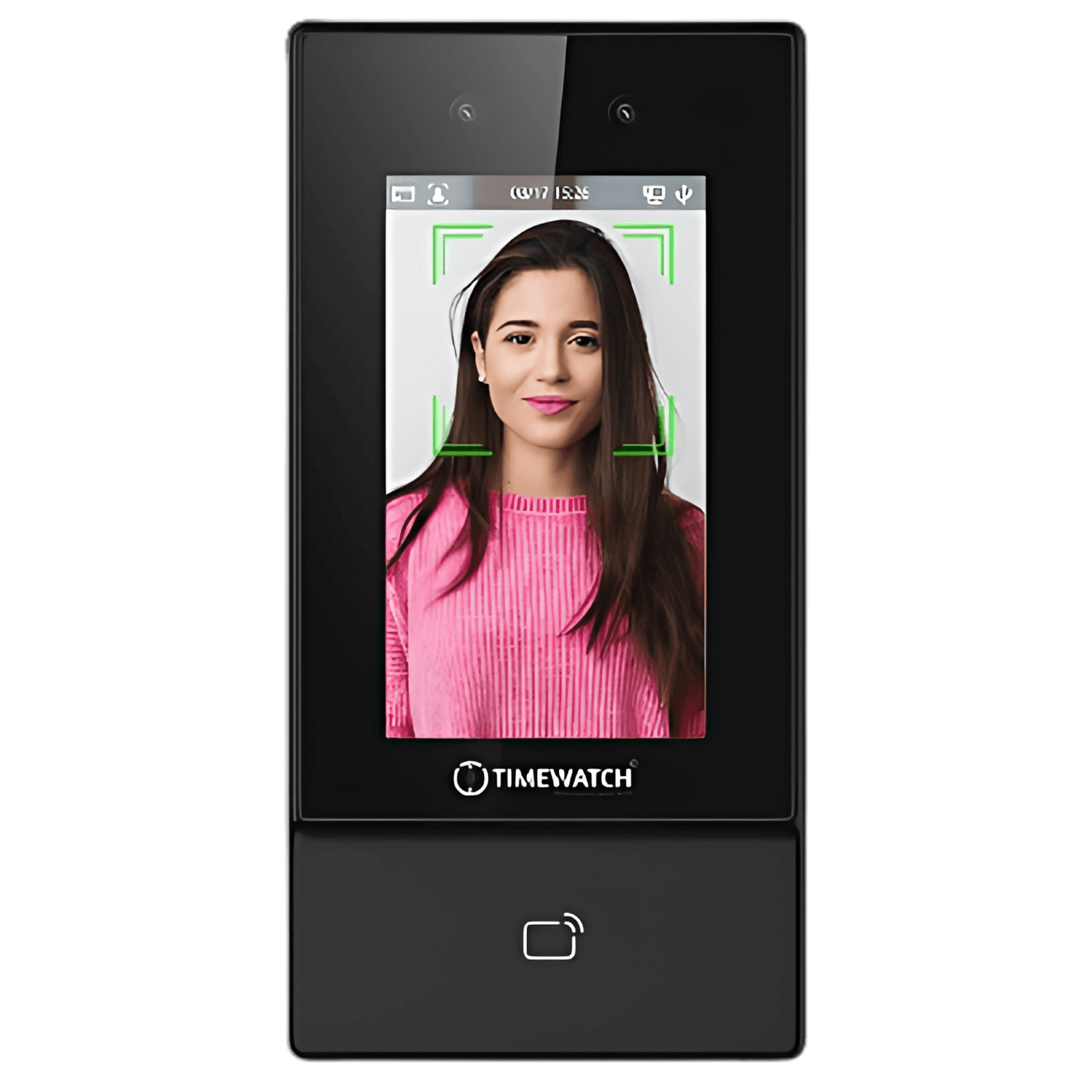

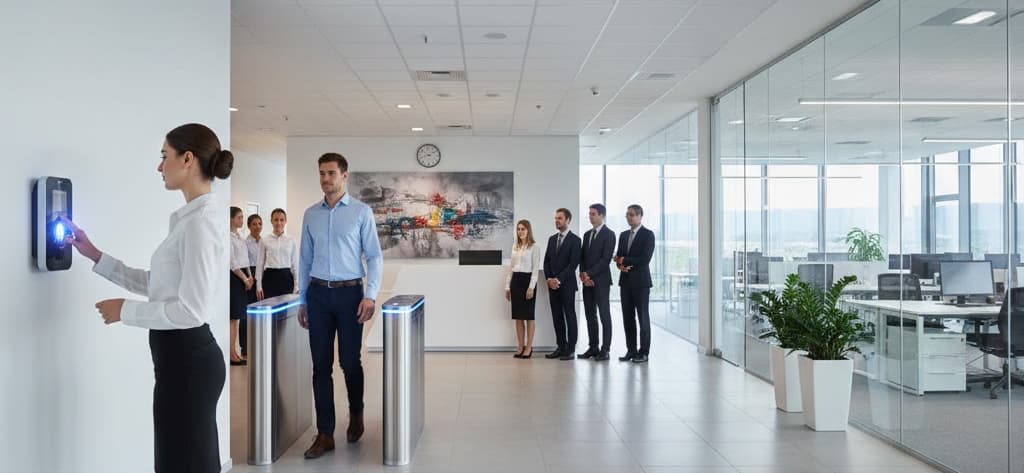

Face terminals, direct sun and blowing dust
Face recognition avoids the contact problem entirely, which makes it the usual alternative here, but it introduces an optical one. A terminal facing an open yard with the sun behind the user is working against strong backlighting, and one in direct sun is working with a saturated image and a hot sensor. Both reduce capture quality, and both are installation problems rather than device problems.
The design responses are simple and have to be decided before the terminal is mounted: orient the unit so the user faces away from the low sun, mount it under the gatehouse or turnstile canopy rather than on an exposed wall, avoid positions where the camera looks straight into a bright sky, and keep the camera window on the cleaning schedule because dust films it before anyone notices visually. Terminals with infrared illumination alongside the visible camera cope considerably better with uneven light, and on an exposed Saudi entrance that is usually the deciding feature rather than a refinement.
Enclosure, mounting and coastal corrosion
Every terminal carries a stated operating temperature range and an ingress protection rating, and on a semi-outdoor mounting both need checking against the site rather than assumed. A unit rated for an indoor band will spend several months of the year outside it in a sun-exposed location, and the first symptoms are usually display problems and erratic reads rather than an outright failure. Where a terminal has to sit in an exposed position, an appropriately rated outdoor housing with a sun hood is the correct answer.
Coastal sites add a second mechanism. Along the Red Sea at Jeddah and Yanbu, and along the Arabian Gulf at Jubail, Dammam and Al Khobar, salt-laden humidity holds a conductive film on exposed metal long after visible wetting has gone. That attacks fasteners, mounting plates, cable entries and terminations, and it reaches electronics through unsealed cable glands. Sealed entries, corrosion-resistant mountings and a check of terminations at every service visit belong in the specification at those locations in a way they do not at Riyadh or Tabuk.
Setting cleaning intervals from conditions, not from a calendar
A fixed service schedule fits this environment poorly, because the variables that actually drive degradation (punch volume, exposure and dust loading) vary enormously between sites in the same city.
| Site condition | Dominant stress | Attention pattern typically suited to it |
|---|---|---|
| Outdoor or semi-outdoor gate, industrial or construction, high punch volume | Dust on the platen and camera window, thermal load, wet or worn hands | Short intervals. Treat sensor and camera cleaning as a scheduled daily or shift-start task rather than a service item, and review the failure-to-read list weekly. |
| Indoor office, ministry or university building | Ordinary soiling of the platen | Standard servicing, with sensor cleaning at a shorter interval than the main visit. |
| Coastal location, any volume | Salt-laden humidity plus damp hands | Corrosion inspection of housing, fixings and cable entries at each visit, and a lower expectation of fingerprint read rates than at an inland site. |
| Accommodation or transport terminal with concentrated peaks | Long idle periods then sustained peak throughput | A pre-peak check that exercises every terminal, the network path and the fallback method before the peak rather than during it. |
| Site adjacent to active earthworks or construction | Very high particulate load | Temporary short-interval cleaning for the duration of the works, reverting afterwards. |
After any significant dust event an additional check of sensors, camera windows and vents is justified regardless of where a site sits in its schedule. It takes minutes per terminal and removes the most common cause of the complaints that follow.
Sizing Terminals for Multi-Shift Operations
Multi-shift operation at the industrial cities of Jubail and Yanbu, at Eastern Province plants and on large construction projects produces a traffic pattern that offices do not: several hundred people arriving at one gate within a few minutes, three times a day. Two separate limits decide whether that works.
- Template storage capacity sets how many users can be enrolled on one terminal, and varies by model. It is the limit people check.
- Throughput sets how many punches per minute the terminal can process, and it is the limit that actually produces the queue. It depends on the capture method, on whether matching is 1:1 or 1:N, and on how clean the presentations are.
Size from the peak, not the daily total. Establish the largest number of people who must pass in the busiest ten minutes, allow for failed reads and re-presentations (a realistic allowance matters here, because this is exactly the population where re-presentation rates are highest) and provide enough lanes or terminals that the busiest shift change sits comfortably inside capacity. Splitting the enrolled population across terminals by contractor or department has the useful side effect of shrinking the 1:N search space at each one.
How Attendance Data Reaches the Software
Once an event is recorded it has to reach the server, and there are two models:
- Push: the device initiates the connection and sends events as they happen, or in short batches. This gives near real-time data and suits remote sites where the terminal sits behind a router and dials out rather than waiting to be reached.
- Pull: the server polls each device on a schedule and downloads accumulated events. Simpler on a single flat network, but the data is only as current as the last poll.
Physical connectivity is Ethernet or Wi-Fi where structured cabling exists, 4G at remote and temporary sites (the normal case at construction and project locations) and RS-485 for multi-device runs inside a building. USB export remains the fallback where there is no network at all.
Terminals hold events in local memory when the link drops, so punches continue to be recorded during an outage and upload when it returns. A network failure delays the data rather than losing it. The limit is the device's log capacity, which is why a long outage on a high-volume gate is worth checking rather than assuming.
What the Software Does With the Data
A raw event is only an ID and a timestamp. The rule engine in the software turns it into meaning:
- Shift resolution: matching each punch to the correct shift, including night shifts crossing midnight and rotating rosters.
- Policy application: grace periods, late marks, early-out rules and half-day thresholds applied as configured policy rather than case-by-case judgement.
- Overtime calculation: hours beyond the assigned shift, computed under the applicable rules and any pre-approval requirement.
- Leave reconciliation: approved leave matched against absences so the register and the leave ledger agree.
- Exception handling: missed punches and anomalies raised as a review queue, with every correction logged and attributed.
- Reporting and payroll output: registers, management reporting and payable-day data exported to payroll or HRMS.
For an organisation operating across several sites in the Kingdom, the value of holding one rule set centrally is that a worker moving between locations is still measured the same way, and that the attendance position for the whole operation can be read from one place rather than reconciled from several.
Where Attendance Machines Are Used in Saudi Arabia
- Oil, gas and petrochemical facilities: large contractor and operator populations, multi-shift working, and attendance records that tie into permit-to-work and site headcount as well as payroll.
- The industrial cities of Jubail and Yanbu: concentrated multi-shift workforces with sharply peaked gate traffic, where terminal count and capture method are sized for shift change rather than daily average.
- Construction and project sites: 4G-connected or portable terminals for workforces that move between locations, in the dustiest conditions any of this equipment meets.
- Government departments and ministry compounds: auditable attendance records across dispersed offices, with central consolidation and a clear correction trail.
- Hospitals and medical cities: contactless iris or face recognition for clinical staff working in gloves and protective equipment, with attendance separated from access rights.
- Universities and schools: staff and student attendance across large campuses in Riyadh, Jeddah, Dhahran and Abha, with concentrated arrival peaks around timetables.
- Ports and logistics: shift and contractor workforces at Jeddah Islamic Port and King Abdulaziz Port, where coastal air shapes both the mounting and the maintenance routine.
- Retail, hospitality and mixed-use developments: multi-outlet attendance consolidated centrally across Makkah Province, Riyadh Province and the Eastern Province rather than managed outlet by outlet.
- Pilgrim-season operations at Makkah and Madinah: temporary and seasonal staffing where enrollment volume is concentrated into a short window and the terminals must be exercised before the peak begins.
TimeWatch supplies biometric attendance and access terminals and the software behind them, and is represented in Saudi Arabia through Shuruq Saudi as authorised national distributor for the Kingdom.
Integration With Other Systems
- Payroll and HRMS: attendance exported as payable days, overtime hours and leave adjustments.
- Access control: the same terminal releasing a door lock, so one credential governs both time and entry.
- Canteen and welfare management: the same identity used at a meal counter with entitlement rules applied automatically, common on accommodation and plant sites.
- Visitor management: staff and visitor movement recorded against one system for a complete site picture.
- ERP and project systems: labour hours booked against projects, departments or job codes.
- CCTV: footage bookmarked against punch events where verification is required.
- Mobile and geo-fenced attendance: field and supervisory staff marking attendance from a phone within a permitted boundary, useful across dispersed project locations.
Installation Considerations for Saudi Sites
- Mounting height and angle: around 1.2 metres for fingerprint terminals; face terminals need a height and tilt that suits the range of user heights actually present, including workers in helmets.
- Shade and orientation: keep the terminal out of direct sun and out of strong backlighting. This single decision affects capture quality, enclosure temperature and the life of the unit at once, and it is almost always settled by accident rather than by design.
- Shelter from blowing dust: a recessed or canopied position accumulates far less particulate on the platen than an exposed wall face.
- Throughput provision: terminal and lane count decided at design stage from the peak shift change, not added after the first queue.
- Network and power: Ethernet or PoE where available, 4G where not, with backup power where attendance must continue through an interruption. Size battery backup for summer temperatures, since capacity and service life both fall as temperature rises.
- Cable entries and earthing: sealed glands at exposed and coastal positions, and proper earthing and surge protection for terminals on long external cable runs.
- Enrollment planning: allocate real time, a quiet shaded space and a trained operator. Enrollment done badly at go-live generates support calls for a year, and for a large contractor mobilisation it is the critical path.
- Language and identifier conventions: agree the display language set and the employee ID convention with HR before enrollment begins, so records reconcile cleanly across a multi-national workforce.
Maintenance Considerations
- Clean sensor platens and camera windows on a schedule set by the site's dust loading, not by a generic interval. On exposed gates this is the highest-value routine task there is.
- Re-enrol users who fail repeatedly rather than relaxing the threshold for everyone.
- Review the failure-to-read list periodically and move persistent cases to a method that suits them.
- Keep firmware current for matching and anti-spoofing improvements.
- Verify time synchronisation. A terminal whose clock has drifted produces subtly wrong attendance for everyone using it, and the error is invisible until a dispute.
- Monitor transaction log capacity and confirm events are uploading, particularly after any network change.
- Inspect housings, fixings and cable entries for corrosion at coastal locations.
- Back up the template database and confirm the restore works before it is needed.
- Check door relay and backup battery function where the terminal also controls access.
- Carry out an additional sensor and vent check after any significant dust event.
Record-Keeping, Standards and Regulatory Context in Saudi Arabia
Attendance records serve more than payroll. Government bodies, ministries, universities, hospitals and large industrial operators generally need an auditable record of who was present, when, and what was changed afterwards, which makes the correction trail in the software as important as the capture at the terminal. Any amendment to a punch should be logged with the user who made it, the original value and the reason.
On the equipment side, specifications in the Kingdom commonly reference standards published by SASO (the Saudi Standards, Metrology and Quality Organization) and by GSO (the GCC Standardization Organization), along with the conformity and product-registration arrangements SASO administers for goods placed on the Saudi market. Where an attendance terminal also releases a door, its behaviour on fire alarm falls within the life-safety framework administered by the General Directorate of Civil Defense, and that interface should be designed in rather than retrofitted.
Two points should be stated plainly:
- Nothing on this page should be read as a statement that any product is approved, certified or compliant under any of these frameworks. This section is context. Conformity status is a property of a specific model and a specific supply, evidenced by documentation for that supply.
- Current requirements must be confirmed with the relevant authority for the specific project, because they change over time and differ by facility type and by the client's own technical specification.
Separately, organisations deploying biometric attendance should confirm their own obligations on employee data handling (what is collected, how long it is retained, who may access it and what alternative is offered to a user the chosen method does not serve) with their legal or compliance advisors, since this depends on sector, contract and the nature of the employment relationship rather than on the equipment.
Benefits and Limitations
Benefits
- Removes buddy punching, a biometric credential cannot be handed to a colleague, which a card can.
- Accurate timestamped records that settle disputes over arrival and departure.
- Replaces manual registers and the reconciliation effort that follows them, which matters most where contractor headcount changes weekly.
- Feeds payroll directly, so every payable day traces back to the punch behind it.
- Consolidates multi-site, multi-shift and multi-contractor data into one view.
- Supports auditable record-keeping for organisations that need to evidence attendance.
Limitations and considerations
- No biometric method works for everyone. Worn ridges, gloves, dressings and facial coverings each defeat specific methods. A fallback is part of the design, not an afterthought.
- Enrollment quality determines everything downstream. Poor initial capture cannot be corrected by configuration.
- Throughput is finite. A large simultaneous shift change needs multiple terminals regardless of storage capacity.
- Environment degrades capture. Dust, surface moisture, dry skin, extreme temperature and harsh lighting all reduce read rates, and in this climate they are the normal condition rather than the exception.
- Privacy expectations must be managed. Explaining that only an encrypted, non-reversible template is held resolves most concern, and is worth doing before deployment.
- Accuracy figures are configuration-dependent. Published FAR and FRR relate to specific test conditions and thresholds; real performance depends on the device, the algorithm, the threshold and the site.
Biometric vs Card Attendance: What Is the Difference?
| Biometric attendance | Card-based attendance | |
|---|---|---|
| What it verifies | The person | The card |
| Buddy punching | Prevented, the credential cannot be transferred | Possible, a card can be handed over |
| Lost credential | Not applicable | Cards are lost, forgotten and need reissuing |
| Speed per user | Typically under a second; 1:N slows as the database grows | Fast and constant regardless of population size |
| Effect of dust, sweat and worn hands | Significant, the central reliability question on outdoor Saudi sites | Minimal, the main practical reason cards persist for site workforces |
| Works for everyone | No, some users are unsuitable for a given method | Yes, for anyone issued a card |
| Typically suited to | Permanent staff where attendance accuracy drives payroll | Large contractor or temporary populations, or as a second factor |
Many Saudi sites run both deliberately: biometrics for permanent staff, cards for rotating contractor populations, and card-plus-biometric 1:1 verification at the gates where it matters most, all feeding one attendance database.
Frequently Asked Questions
Does an attendance machine store my fingerprint?
No. The terminal converts the fingerprint into a numeric template describing distinctive features such as ridge endings and their positions, then discards the original image. The template is one-way: it can recognise the same finger again but cannot be used to rebuild the fingerprint. TimeWatch terminals additionally secure templates with AES-128 encryption on the device and in transit.
How does a biometric attendance machine recognise a person?
It captures a sample, extracts the distinctive features into a numeric template, and compares that template against the ones created at enrollment. The comparison produces a similarity score. If the score passes the configured threshold the person is identified, and an attendance event is written with their ID, the time, the direction and the device identifier.
Why does fingerprint attendance fail for outdoor and manual workers in Saudi Arabia?
Because the sensor depends on contrast between ridge and valley across a small contact patch, and site conditions destroy it. Dust on the platen scatters the illumination, sweat floods the valleys, very dry skin makes poor contact, and sustained manual work physically wears the ridge detail away. For a proportion of construction, quarry and maintenance workers there is not enough ridge structure left to extract a stable template at all. This is a recognised limitation of the method rather than a device fault, and the answer is to provide face, palm vein or card for those users.
How do high temperatures and dust affect an attendance terminal in the Kingdom?
Dust is the dominant problem. A film of fine particulate on a fingerprint platen or a camera window degrades capture quality gradually, so read rates worsen over weeks rather than failing outright, and cleaning is the fix. Heat affects the terminal itself: every unit carries a stated operating temperature range, and a device rated for indoor use will spend several months of the year outside that range in a sun-exposed position. Shading the terminal, mounting it under a canopy and specifying an outdoor-rated housing where exposure is unavoidable are the practical responses.
Can an attendance machine work without an internet connection?
Yes. Matching happens on the terminal itself, so identification continues with no network at all. Events are held in local memory and upload automatically when the connection returns, which is why 4G-connected terminals at remote project sites remain dependable through patchy coverage. The constraint is the device's log capacity, so a very long outage on a busy terminal should be checked rather than assumed.
What is the difference between 1:1 and 1:N matching?
In 1:1 verification the user first identifies themselves with a card or PIN and the device compares against that one stored template. In 1:N identification the user presents only the biometric and the device searches every enrolled template. 1:N is more convenient, but the search space grows with headcount and matching becomes less discriminating. Large sites commonly move to 1:1, or split the enrolled population across terminals by gate or contractor.
How many terminals does a shift change of several hundred workers need?
More than the storage capacity alone suggests. Two separate limits apply: template storage sets how many users can be enrolled on a device, while throughput sets how many punches per minute it can process, and throughput is what produces the queue. Size from the busiest ten minutes rather than the daily total, allow for failed reads and re-presentations, and provide enough terminals or lanes that the peak sits comfortably inside capacity.
Which capture method suits a large multi-national workforce across industrial sites?
Usually more than one. A single site may hold office staff, process operators, maintenance crews and several rotating contractor populations, and each presents a different hand to the same sensor. Fingerprint suits indoor administrative populations; face and palm vein suit manual and outdoor workers whose hands are unsuitable for contact capture; cards suit large temporary contractor groups and work well as the first factor in 1:1 verification. Multi-modal terminals exist precisely so one site can run different users on different methods against one database.
Can one terminal handle attendance and door access together?
Yes. Most terminals include a relay output that releases an electromagnetic lock or strike on a successful match, so the same device records the attendance event and opens the door. The software can apply different rules to each function, recording attendance for everyone while granting door access only to authorised groups. Where a terminal controls a door on an occupied building, its behaviour on fire alarm is a life-safety matter and should be designed in with the relevant authority in view.
How does attendance data reach payroll software?
The terminal transfers events to the attendance software, which applies shift, leave and overtime rules to convert punches into payable days. That output is exported to payroll or HRMS in the format the payroll system expects, or processed within the attendance platform where it handles payroll directly. Because the input is the attendance record itself, any payroll figure can be traced back to the punch behind it.
What record-keeping and standards context applies in Saudi Arabia, and who supports the equipment locally?
Organisations generally need an auditable record of attendance and of any subsequent correction, which makes the amendment trail in the software as important as the capture at the terminal. Equipment specifications in the Kingdom commonly reference standards published by SASO and GSO, and where a terminal also releases a door its behaviour on fire alarm falls within the framework of the General Directorate of Civil Defense. Requirements change over time and vary by project, so the current position must be confirmed with the relevant authority, and employee data handling obligations should be confirmed with legal or compliance advisors. For support within the Kingdom, TimeWatch equipment is represented in Saudi Arabia through Shuruq Saudi as authorised national distributor.
