How Does a Swing Barrier Work?
What Is a Swing Barrier?
A swing barrier (also called a swing gate or swing turnstile) is the lane you walk through at a staffed reception floor. In the Kingdom it appears at ministry and government compound entrances, in the lobbies of corporate headquarters in Riyadh and across the Eastern Province, at university and hospital entrances where the arriving population includes the public, and at the entrances of the large mixed-use developments now being completed in Riyadh, Jeddah and Tabuk.
It belongs to the same family as the flap barrier and the tripod turnstile, and the three are frequently installed in one entrance rather than chosen between. What distinguishes them is mechanical, and that mechanical difference decides which people can actually use which lane, a point that carries unusual weight on a public-facing building.
It is worth being precise about the purpose. A swing barrier is an identification and recording device, not a physical defence. Its panels are waist or chest height on most models. What it delivers is a controlled decision point: nobody passes without being identified, and every passage is written to a log. On a government or institutional entrance that record is usually the real deliverable, and the moving panel is simply how the decision is enforced.
How Does a Swing Barrier Work?
A swing barrier works in four stages. A person presents a credential at the reader built into the pedestal. The controller validates it against the permitted list. On a valid match the controller drives the motor, and the panel rotates roughly 90 degrees about its vertical axis to clear the lane. An infrared sensor array then tracks the passage, and once it confirms the person has cleared the lane the panel swings closed and the event is logged.
Present, validate, swing open, track, close. Everything else on this page sits beneath those five words, including the environmental engineering that decides whether the tracking stage still works reliably after a dusty week.

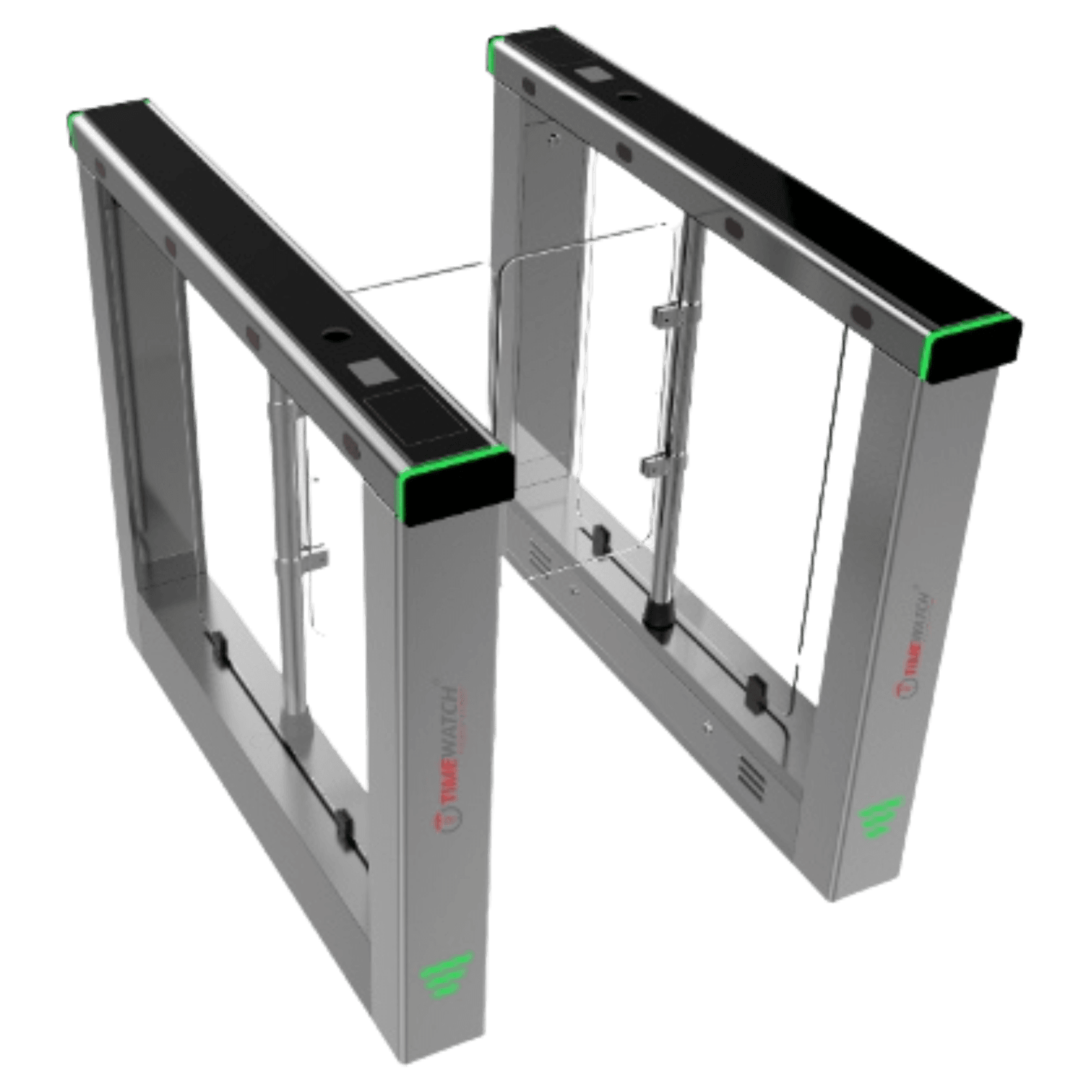

Main Components of a Swing Barrier
| Component | Function |
|---|---|
| Pedestal housings | Stainless steel or powder-coated enclosures standing on either side of the lane, holding the drive assembly, controller, sensor array and reader. Finish and profile are usually matched to the lobby's architecture, and in this region the finish is also a durability decision. |
| Swing panel and panel mount | The moving element: toughened glass, acrylic or steel, fixed to a mounting boss on the drive shaft. Panel height and width define the lane geometry and the effort required to climb or duck under it. |
| Drive motor and gearbox | Typically a brushless DC servo motor with a reduction gearbox, providing the torque that rotates the panel and the controlled deceleration that stops it cleanly at each end of travel. |
| Position feedback (encoder) | Reports shaft position continuously, so the controller always knows where the panel is and can detect an obstruction by monitoring drive load. |
| Main controller | The logic of the lane. Accepts credential and safety inputs, drives the motor, runs the passage timers and anti-tailgating logic, and communicates with the access control platform. |
| Infrared sensor array | Transmitter and receiver beam pairs at multiple heights along both pedestals, tracking objects and people in the lane. The subsystem that most determines how well the lane performs. |
| Credential reader | Card, face recognition, fingerprint, QR or mobile reader mounted in or on the pedestal head, facing the approach direction. |
| Direction indicator LEDs | Arrow or cross indicators on the pedestal head telling the user whether the lane is open to them and in which direction. |
| Alarm | Audible and visual annunciation for tailgating, wrong-direction entry, forced passage or a panel held open too long. |
| Manual release | A mechanism that disengages the drive so panels can be pushed open by hand during a power failure or an evacuation. |
| Power supply | Regulated low-voltage supply for the drive and electronics, commonly with battery or UPS provision where the lane must keep working through an outage. |
Pedestals and swing panel
The pedestal is not simply a cover. Its length and internal layout set how many sensor beams can be fitted and how far apart they sit, which is what decides whether the lane can tell one body from two. A short pedestal constrains the array before any firmware is written, so pedestal length and anti-tailgating capability are the same decision taken twice.
Panel material is the other choice made at this stage, and it is mechanical as much as architectural. A toughened glass panel carries considerably more rotational inertia than an acrylic one, and it must be matched to a drive rated for that mass at the site's expected cycle count. A heavy glass panel on an undersized drive runs the motor hot, wears the gearbox and makes travel progressively less crisp, and in a lobby that already sits at a high ambient temperature, the thermal margin the drive is working with is narrower than the catalogue assumed.
Drive motor, gearbox and position feedback
Most current swing barriers use a brushless DC servo motor with a reduction gearbox. Brushless construction removes the brush wear that limits cycle life in a lane doing thousands of movements a day, and the servo arrangement gives the controller fine control over acceleration and deceleration, so the panel starts and stops smoothly rather than snatching. The encoder on the shaft closes the loop: the controller knows the panel's angle at every instant, which is what lets it halt the panel mid-travel if something is in the way, hold it open on command, and report a mechanical fault rather than simply stalling against it.
Load monitoring through that same feedback path is how obstruction detection works. A rise in drive current at a point in travel where the panel should be moving freely is read as contact, and the controller stops or reverses. Worth knowing on a dusty site: a gearbox whose grease has picked up abrasive particles draws more current at the same workload, and a controller can begin reporting obstructions that are really a lubrication problem.
Controller and credential reader
The controller holds the passage timers, the direction rules for the lane, the response to each alarm condition, and the interface to the access control platform. The reader sits in the pedestal head so the user presents a card or a face without breaking stride.
Where the validation decision is actually taken (in the reader, in a local access control panel, or in server-side software) varies by system design, and it determines how the lane behaves when the network link drops. On a ministry or hospital entrance that is a question to settle at design stage with the client's IT and security teams, not one to discover at commissioning when a switch is rebooted.
Infrared sensor array
This is the subsystem that determines how good the barrier actually is, and the two sections that follow cover it: first how it works, then what the local environment does to it.
How Does a Swing Barrier Work Step by Step?
| Step | What happens | How it works |
|---|---|---|
| 1 | Person approaches the lane | The sensor array registers a body at the approach side. Direction indicators show the lane's current state. |
| 2 | Credential is presented | A card is tapped, a face is presented to the terminal, a finger is placed on the sensor, or a QR code is shown to the scanner in the pedestal head. |
| 3 | Authorisation is decided | The credential is checked against the permitted list held in the controller, access control panel or server software. A valid match produces an open command; an invalid one does not, and is logged as a denied attempt. |
| 4 | Controller signals the drive | The control board commands the servo motor. Acceleration is ramped so the panel does not snatch at the start of travel. |
| 5 | Panel swings open | The gearbox turns the panel through roughly 90 degrees about its vertical axis, clearing the lane. The encoder confirms the fully open position and the drive holds it there. |
| 6 | Person enters the lane | Beams in the entry zone break in sequence. The controller begins counting bodies and establishing direction of travel. |
| 7 | Passage is tracked | As the person moves along the lane, successive beam pairs break and restore. The pattern and order tell the controller how many bodies are present and which way they are going. |
| 8 | Passage is confirmed complete | When the exit-side beams have cleared and no body remains in the lane, the controller treats the authorised passage as finished. |
| 9 | Panel swings closed | The drive returns the panel to the closed position, decelerating into the stop. If a beam breaks during closing, the panel halts or reopens depending on configuration. |
| 10 | Event is logged | The passage (credential, direction, lane, timestamp and any alarm raised) is written to the access control or time-attendance database. |
If the array detects a second body following on one authorisation at step 7, the controller raises a tailgating alarm and, depending on configuration, closes the panel against the follower. Notice how much of this cycle depends on steps 6 to 8 being read correctly: if the array is reporting beams as broken when nothing is there, the lane cannot complete step 8, and the panel stays open or re-opens. That is the failure mode this region produces most often, and it is covered two sections below.
How the Sensor Array Detects Tailgating
The array is a set of infrared transmitter and receiver pairs facing each other across the lane, mounted at several heights along the length of both pedestals. Each pair forms a beam. When something interrupts a beam, the receiver stops seeing its transmitter and the controller registers that beam as broken.
On its own that is a simple presence detector. What makes it useful is the sequence. Because the beams sit at known positions along the lane and at known heights, the order in which they break and restore describes a movement. A single adult walking through breaks the beams in a smooth front-to-back progression. Two adults walking close together produce a different pattern: beams at the rear of the lane remain broken after the front beams have restored, and the controller reads that as two bodies on one authorisation. Entering from the wrong end reverses the sequence, which is how wrong-direction entry is caught.
This leads to the single most important point in specifying swing barriers: the sensor array, not the panel, determines how good the anti-tailgating is. Beam count, beam spacing and beam height decide whether the system can distinguish an adult carrying a child from two adults walking close together, a genuinely hard discrimination that needs beams low enough to see legs and enough of them along the lane to separate one gait from two. A lane fitted with too few beams will be defeated routinely, and no amount of panel quality compensates for it. When evaluating equipment, the number and arrangement of beam pairs is the specification to interrogate first, ahead of panel material, finish and anything on the data sheet about appearance.
Exactly how the controller responds to a detected violation varies by model and configuration. Common options include an audible alarm only, an alarm plus a message to the security desk, closing the panel against the follower, or holding the lane locked until an operator resets it. On a public-facing building the choice matters more than it first appears: a lane that locks on every violation will be locked often where visitors are unfamiliar with it, and the configuration should match the population rather than the specification sheet.
Why Dust Is the Main Reliability Question in Saudi Arabia
A swing barrier is an indoor device, which leads people to assume the environmental considerations that dominate a vehicle gate do not apply to it. That assumption is where most of the trouble starts. A reception lobby is not a sealed room: it opens directly onto the outside, doors cycle continuously, and air carrying fine airborne particles moves in with every person. The equipment that minds this most is the one the whole lane depends on.
Dust on the array and false obstruction detection
The infrared array works on a margin. The receiver has to see enough of the transmitter's modulated signal to call the beam intact. A film of fine dust settling on a transmitter or receiver lens attenuates that signal, and the margin shrinks. Attenuate it enough and the receiver reads an unbroken beam as broken.
From the controller's point of view, that is a body in the lane. The consequences follow directly from the operating cycle above: the lane refuses to confirm step 8, so the panel stays open; or a beam appears to break during closing, so the panel halts or reopens; or the beam pattern no longer matches a single clean passage, so a tailgating alarm is raised against nobody. Airborne dust settling on the array is a genuine maintenance driver here, and it presents as nuisance alarms and erratic panel behaviour rather than as anything that looks like a dirty lens.
This is the regional point that temperate-climate installations rarely have to make. A lobby lane in a mild, low-particulate climate may go months between lens cleans without anyone noticing. A lane in an entrance that opens onto a Riyadh forecourt, or onto a site where earthworks are still under way, does not. The diagnosis is frequently wrong when it first arises: a facilities team sees repeated alarms, concludes the sensor boards are faulty, and replaces them, after which the problem returns on the same schedule. The correct first response to erratic detection on a swing lane in this region is to clean every lens on both pedestals and re-check, before any component is suspected.
Panel and pedestal finish against abrasion
Fine wind-borne particles are hard and angular, and in an entrance they are carried in on shoes, clothing and trolley wheels before being redistributed by foot traffic and air movement. On a swing barrier that does two things.
- It abrades visible surfaces. A pedestal top and a panel edge get wiped down daily by cleaning staff, and wiping dust across a surface is abrasive. A soft or thinly applied finish hazes and scratches at exactly the eye-level positions a client notices. Brushed or hairline stainless, or a properly cured powder coat over correctly prepared substrate, holds up to that routine considerably better than a mirror polish or a decorative lacquer.
- It reaches moving interfaces. Particles working into the panel mounting boss, the shaft seal and the gearbox act as a grinding medium. Sealed bearings, an effective shaft seal at the panel mount, and a lubricant specification that acknowledges particulate contamination all matter more here than the general catalogue assumes.
Glass panels deserve a specific note. Edge chips on toughened glass propagate, and a chipped panel edge in a high-traffic entrance is both an appearance issue and an integrity one. Where trolleys, luggage and delivery traffic use the wide lane, panel edge protection and a panel material chosen for that duty are worth settling at design stage.
Coastal salt at Red Sea and Gulf sites
Inland and coastal entrances are different corrosion environments and specifying them identically is a mistake in both directions. At an inland site the dominant problem is particulate: abrasion and optical fouling. Along the Red Sea coast at Jeddah and Yanbu, and along the Arabian Gulf at Jubail, Dammam and Al Khobar, humid air carries salt aerosol in through the entrance with every door cycle. Salt is hygroscopic, it draws moisture from humid air and holds a conductive film against metal long after any visible wetting has gone.
On a pedestrian lane the vulnerable points are not the ones a vehicle gate presents. They are the floor fixings at the pedestal base, where cleaning water and mopping concentrate; the cut edges and welds inside the pedestal, which are rarely coated as well as the visible exterior; and the electrical terminations in the pedestal base, which sit at the coolest point of the enclosure and collect condensate. For a coastal lobby that argues for stainless of an appropriate grade at the base fixings rather than plated carbon steel, attention to coated cut edges, and a conformally coated control board where the technical evaluation allows the question to be asked.
Setting cleaning intervals from conditions
A fixed service schedule fits this equipment badly, because the two variables that drive attention (passage count and particulate exposure) vary enormously between entrances in the same city. A ministry staff entrance passing a few hundred people twice a day and a hospital main lobby passing thousands continuously are not on the same curve, and neither is on the curve a generic schedule assumes.
| Entrance condition | Dominant stress | Attention pattern typically suited to it |
|---|---|---|
| Lobby opening directly onto an exposed forecourt or car park, inland | Continuous fine particulate on the array | Short intervals. Lens cleaning on both pedestals treated as a scheduled task in its own right, well ahead of the mechanical service interval. |
| Entrance within an enclosed mall or an air-locked lobby | Moderate particulate, high passage count | Standard mechanical servicing, with lens cleaning at a shorter interval and drive inspection driven by cycle count rather than calendar. |
| Coastal entrance, any passage count | Salt-laden humid air plus particulate | Corrosion inspection of base fixings, cut edges and terminations at each visit, in addition to the lens and mechanical routine. |
| Building adjacent to active construction or earthworks | Very high particulate load | Temporary short-interval lens cleaning for the duration of the works, reverting afterwards. Common where an entrance goes live before the surrounding development is finished. |
| Public-facing entrance with seasonal peaks | Long quiet periods then sustained heavy use | A pre-season check that fully exercises panels, array, manual release and the fire alarm interface before the peak, rather than a visit on a fixed calendar date. |
After any significant dust event, an additional lens inspection is justified regardless of where the entrance sits in its schedule. It takes minutes per lane and it prevents the week of nuisance alarms that otherwise follows.
Credentials a Swing Barrier Can Read
The lane itself is credential-agnostic; what changes is the reader fitted in the pedestal head.
- Proximity and smart cards: the established method for staff entrances, read on a tap at the pedestal.
- Face recognition: a terminal at head height on the pedestal, now common in corporate and government lobbies because it is contactless and quick.
- Fingerprint: still used where the population is fixed and enrolment is straightforward, though contactless methods have displaced it in many public-facing entrances.
- QR and barcode: well suited to visitors, contractors and event access, since the code can be issued in advance by email or message.
- Mobile credentials: a phone acting as the card over Bluetooth or NFC, depending on the reader.
Most sites run more than one in parallel: staff on face or card, visitors on a QR pass. On government and institutional entrances the visitor path usually carries additional process (registration, identity verification and escort rules) and the credential issued to the visitor has to carry a validity window that matches it. Which combinations a given lane supports depends on the reader and the controller, not on the barrier mechanism.
Fail-Safe vs Fail-Secure: What Happens in an Emergency
On a fire alarm signal or a loss of power, swing barrier panels typically open and hold, clearing the egress route so the lane cannot obstruct evacuation. This is the fail-safe configuration, and it is the usual choice on any lane forming part of a designated escape route.
The alternative is fail-secure: panels stay locked in the closed position on power loss, so the boundary is not opened simply by cutting the supply. Both behaviours are configurable in the controller and both are legitimate, for different routes.
The practitioner point here is a governance one. Fail-safe versus fail-secure has to be decided with the fire strategy, not selected by default in the controller settings. The decision belongs to whoever owns life safety for that route, in consultation with the security requirement, and it should be documented before commissioning rather than left at whatever the factory default happened to be. In the Kingdom, arrangements of this kind on occupied premises fall within the framework administered by the General Directorate of Civil Defense, which makes the decision a matter to settle with that framework in view from design stage rather than a configuration detail at handover.
Where a lane is set fail-secure, the escape provision has to come from somewhere else (an adjacent door, a break-glass release) and that provision belongs in the same conversation. The manual release in the pedestal complements this decision; it does not substitute for it.
Why the Wide Accessible Lane Matters
This is the swing barrier's defining characteristic. Because the panel rotates about a vertical axis at the pedestal, the lane can be made considerably wider than a tripod turnstile allows. A wide-lane swing barrier passes a wheelchair, a walking frame, a trolley, a suitcase, a delivery or a parent with a pram. A tripod turnstile physically cannot: its rotating arms define a fixed, narrow aperture.
That is why most real installations pair several narrow lanes with at least one wide swing lane. The narrow lanes carry the bulk of throughput at peak; the wide lane carries everybody the narrow lanes exclude. The wide accessible lane is a necessity, not an upgrade.
The argument carries extra weight on the buildings this page is mostly about. A ministry or municipal office, a hospital outpatient entrance, a university administration building and a large mixed-use development all serve the public, and a public population includes elderly visitors, people with reduced mobility, people arriving with family members, and people carrying things. An entrance assembled entirely from narrow lanes does not merely inconvenience that population, it produces a day-one access problem, usually resolved on site by propping a side door open, which defeats the entrance control completely and silently. Getting the lane mix right at design stage is far simpler than retrofitting a wide lane into a finished lobby floor with services already cast in.
Where Swing Barriers Are Used in Saudi Arabia
Pedestrian entrance control in the Kingdom concentrates in a recognisable set of building types, most of which combine a controlled staff population with a visiting public one:
- Government and ministry buildings: controlled, recorded entry with staff and visitor flows separated at the lane, and an accessibility obligation that comes with serving the public. These entrances typically need a formal visitor process in front of the lane rather than behind it, and a lane mix that can absorb a visitor peak without the staff lanes backing up.
- Corporate headquarters in Riyadh and the Eastern Province: reception floors in Riyadh and in the business districts around Dhahran, Al Khobar and Dammam, where staff pass on face or card and visitors on a QR pass issued ahead of arrival. Lobby finishes are usually architect-specified, which is where panel material and pedestal finish become a shared decision between the designer and the installer.
- Universities and research campuses: large institutions in Riyadh, Jeddah, Dhahran and Abha with sharp timetable-driven peaks, where the lane doubles as an attendance record and the wide lane carries students with equipment and deliveries to departments.
- Hospitals and medical cities: the application where the wide lane is least negotiable, because wheelchairs, walking aids and patient-accompanying traffic are the normal case rather than the exception. Separation of staff, outpatient and visitor routes at the entrance is usually the operational requirement driving the lane count.
- Large mixed-use and retail developments: office cores within mixed-use schemes in Riyadh, Jeddah and the new districts at Tabuk, where a tenant-facing lobby lane sits behind a public mall environment and the entrance control starts at the office core rather than at the street.
- Industrial and plant administration buildings: office and administration entrances at facilities in Jubail and Yanbu, where shift-pattern arrival peaks are sharp and the entrance record feeds attendance as well as security.
- Public and pilgrim-facing administrative buildings: service and administrative offices around Makkah and Madinah that handle large visiting populations in defined periods, where lane capacity has to be sized for a seasonal peak rather than an annual average and the accessible lane carries a materially higher share of traffic than it would elsewhere.
- Data centres and secure technical facilities: frequently as the outer lane in front of an interlock or mantrap, with the wide lane sized to pass equipment on a trolley.
Across these building types the barrier is rarely the whole answer. It is the moving part of an entrance that also contains identification, visitor processing, recording and, on some sites, screening stages, and it performs when it is specified as part of that entrance rather than bought on its own. TimeWatch supplies entrance control and related access and inspection equipment, and is represented in Saudi Arabia through Shuruq Saudi as authorised national distributor for the Kingdom.
Integration With Other Systems
- Access control: the same credential database governing doors, vehicle gates and turnstiles governs the lane, so one revocation closes every route at once.
- Time and attendance: the lane passage doubles as the attendance punch, which removes a separate device at the entrance and is a common requirement on institutional and plant administration sites.
- Visitor management: a pre-registered visitor receives a QR pass the pedestal reader accepts for a defined window, which matters on government and ministry entrances where the visitor process is formal and documented.
- CCTV and video analytics: the camera bookmarks footage against each lane event, so a tailgating alarm can be reviewed directly from its log entry rather than by scrubbing recordings.
- Fire alarm systems: a dry contact driving panels to their configured emergency position, designed and tested as an interface between two systems rather than added at the end as a pair of wires.
- Screening and inspection equipment: on higher-security entrances the lane releases only after the screening stage has returned a clear result, which sequences the queue so people are held at the correct point.
- Building management and lift destination control: a validated passage can call a lift to the user's floor, increasingly common in tall commercial buildings and a useful way of smoothing lobby congestion at peak.
Installation Considerations for Saudi Lobbies
- Floor preparation and levelling: pedestals must be anchored to a level, load-bearing surface. Out-of-level pedestals misalign the beam pairs and produce intermittent false detections that are very hard to diagnose later, and that present exactly like a dust problem.
- Cable routing before the floor finish: power and data conduits have to be cast or chased in before stone or tile is laid. Retrofitting them afterwards is disruptive and usually visible in a lobby that has been designed to be looked at.
- Lane mix and lane count: calculate the peak throughput and fix the narrow-to-wide ratio at design stage, with the public-facing population taken into account rather than the staff headcount alone.
- Beam alignment at commissioning: transmitter and receiver pairs must be aligned and the alignment verified across the full lane length, with the result recorded so a later drift can be identified as drift.
- Panel clearance: the swept path of the panel must be clear of walls, planters, signage and adjacent pedestals through its full travel, including after a lobby refit adds furniture nobody consulted the installer about.
- Entrance air path: where the layout allows, avoid positioning a lane directly in the path of the incoming air stream from a main door, which is the single easiest way to reduce the rate at which particulate reaches the array.
- Reader positioning and approach direction: mount the reader so the natural approach presents the credential without the user turning back on themselves. For face recognition, consider the light falling on the approach: strong direct sun through a glazed entrance behind the user is a recognition problem, not a product fault.
- Finish specification agreed with the architect: panel material, pedestal finish and base fixing grade settled against the entrance's real exposure, not chosen on site from what is available.
- Power supply: stable supply, with battery or UPS provision where the lane must operate through an outage.
- Fire panel interface: the emergency contact must be wired, documented and tested as part of commissioning, not left for a later visit.
Maintenance Considerations
- Clean every infrared lens on both pedestals, and treat this as a scheduled item on its own frequency rather than as part of the mechanical service. On dusty entrances it is the highest-value routine task on the lane.
- Verify beam alignment periodically, and always after any impact to a pedestal, a trolley strike is a common and under-reported cause.
- Inspect the panel mount and fixings for looseness, and glass panels for edge chips before they propagate.
- Check drive and gearbox condition at the manufacturer's interval, using a lubricant specification appropriate to a particulate-exposed environment, and listen for changes in travel sound, which usually precede a failure.
- Confirm the encoder is reporting correct end positions so the panel stops cleanly at both limits.
- Inspect pedestal base fixings, cut edges and internal terminations for corrosion at coastal entrances, and keep cleaning water away from the base during routine floor washing.
- Test the manual release, before it is needed rather than during an incident.
- Test the fire alarm interface as part of scheduled fire drills and record the result.
- Review tailgating alarm logs. A rising rate is usually a sensor or alignment problem rather than a change in behaviour, and the log is the earliest warning available.
- Carry out an additional lens inspection after any significant dust event, outside the normal schedule.
Regulatory and Standards Context in Saudi Arabia
Security and life-safety installations in the Kingdom sit within the framework administered by the General Directorate of Civil Defense, which is the authority concerned with fire and life-safety arrangements on occupied premises. For a pedestrian entrance lane the relevant question is the one raised above: how the panels behave on a fire alarm signal, whether the lane forms part of a designated escape route, and how the interface to the alarm system is arranged and tested. On a building that serves the public (a ministry office, a hospital, a university, a mixed-use development) that question should be asked at design stage, when the lane layout and the emergency behaviour are both still open.
On the equipment side, specifications in the Kingdom commonly reference standards published by SASO (the Saudi Standards, Metrology and Quality Organization) and by GSO (the GCC Standardization Organization), along with the conformity and product-registration arrangements SASO administers for goods placed on the Saudi market. Large clients (government bodies, health authorities, universities and major developers) also publish their own technical specifications, which frequently go further than the general framework in areas such as finish, accessibility provision and operating environment.
Two points should be stated plainly:
- Nothing on this page should be read as a statement that any particular product is approved, certified or compliant under any of these frameworks. This section is context, not a claim. Conformity status is a property of a specific model and a specific supply, evidenced by documentation for that supply.
- Current requirements must be confirmed with the relevant authority for the specific project. Requirements change over time and vary by building type and by the client's own specification. The position applying to a hospital, a ministry building, a university and a retail-led mixed-use development is not the same position, and the only reliable source is the authority and the client specification for that project at that time.
Benefits and Limitations
Benefits
- Accessible by design, the wide lane passes wheelchairs, walking aids, trolleys, luggage and deliveries, which is what makes the type suitable for buildings serving the public.
- Controlled, recorded pedestrian access with a complete audit trail by credential, direction and time.
- Active anti-tailgating and wrong-direction detection through the sensor array, with alarms recorded rather than merely sounded.
- Glass or acrylic panels suit finished lobby environments where a mechanical turnstile would look out of place, which matters where the entrance is part of the architecture.
- Integrates with access control, attendance, visitor and CCTV systems so one record covers the entrance.
Limitations and considerations
- It is not a physical security barrier. Panels are waist or chest height on most models and can be climbed or vaulted. Where a physical boundary is the requirement, a full height turnstile or a secured door is the correct equipment.
- Throughput per lane is lower than a tripod turnstile on the same footprint, because the panel must complete its swing and the array must confirm passage before the next authorisation.
- Anti-tailgating performance varies widely between models according to beam count and arrangement, so it should be assessed on the specification rather than assumed from the product category.
- Maintenance demand is higher here than in a temperate climate. Lens cleaning is not an optional extra on a dusty entrance; the lane's reliability depends on it, and a schedule written for a mild climate will produce nuisance alarms within weeks.
- Emergency behaviour must be set deliberately and tested, not inherited from a default and discovered during a drill.
Exact behaviour (panel opening time, lane width, beam count, alarm responses and integration options) depends on the specific model, controller, firmware and site configuration. Detailed figures should always be confirmed against the datasheet for the equipment actually being specified.
Swing Barrier vs Flap Barrier vs Tripod Turnstile
| Swing barrier | Flap barrier | Tripod turnstile | |
|---|---|---|---|
| Mechanism | Panel rotates about a vertical axis to clear the lane | Flap retracts into or folds back towards the pedestal | Three-armed rotor rotates 120 degrees per passage |
| Lane width and accessibility | Can be made wide; passes wheelchairs, trolleys and luggage | Standard and wide variants available; wide models pass most accessibility needs | Fixed narrow aperture; cannot pass a wheelchair or trolley |
| Throughput | Moderate; panel travel and passage confirmation set the pace | Generally faster than swing, as flap travel is shorter | High for unencumbered single-file flow |
| Physical robustness | Moderate; glass or steel panel, climbable | Moderate to lower; flaps are lighter and more easily forced | Higher; mechanical rotor resists forcing, though still waist height |
| Typically suited to | Government and corporate lobbies, hospitals, universities, any entrance needing an accessible lane | Office cores and concourses where throughput and a slim footprint matter | Plant and site gates, stadiums and high-volume single-file flow |
The three are complements rather than alternatives, and a well-designed entrance usually mixes them. A common arrangement in a Saudi lobby pairs several flap or tripod lanes for volume with one wide swing lane for accessibility and deliveries, with the lane count driven by the peak the entrance actually sees rather than by the floor area available.
Frequently Asked Questions
How does a swing barrier detect a person?
An infrared sensor array in the two pedestals detects the person. Transmitter and receiver beam pairs at several heights face each other across the lane, and the controller reads which beams are broken and in what order. That sequence tells it how many bodies are in the lane and which direction they are moving.
How does a swing gate stop tailgating?
The controller compares the pattern of beam breaks against the pattern a single authorised passage produces. If beams at the rear of the lane stay broken after the front beams have cleared, it treats that as a second body on one authorisation and raises a tailgating alarm. Depending on configuration it may also close the panel against the follower or hold the lane locked until an operator resets it.
Why does a swing barrier alarm or stay open when nobody is in the lane?
In this region the usual cause is a film of dust on the infrared lenses. The array works on a signal margin, and settled dust attenuates the beam until the receiver reads an unbroken beam as broken, which the controller interprets as a body in the lane. The symptoms are nuisance tailgating alarms, panels that refuse to close, and panels that reopen mid-travel. Clean every lens on both pedestals and re-check before suspecting the sensor boards, which are replaced unnecessarily more often than any other part of the lane.
Does airborne dust affect a swing barrier even though it is installed indoors?
Yes. A lobby is not a sealed environment: doors cycle continuously and fine airborne particles come in with the air and on footwear. Dust settles on the sensor lenses and causes false obstruction detection, abrades panel and pedestal finishes as cleaning staff wipe it across them, and works into the panel mounting and gearbox as a grinding medium. Lens cleaning should be a scheduled item with its own frequency rather than part of the mechanical service interval.
What is the difference between a swing barrier and a flap barrier?
The difference is how the moving element clears the lane. A swing barrier rotates a rigid panel about a vertical axis, while a flap barrier retracts or folds its flaps back towards the pedestal. Swing barriers are generally chosen where a wide accessible lane is needed; flap barriers are generally chosen where throughput and a slim footprint matter more.
Can a wheelchair pass through a swing barrier?
Yes, provided a wide lane has been specified. The swing barrier is the lane type that can be made wide enough for a wheelchair, a walking frame, a trolley, luggage or a delivery, which a tripod turnstile physically cannot. On buildings that serve the public (ministry offices, hospitals, universities and mixed-use developments) the wide lane should be treated as a requirement from the first layout rather than as an option added later.
What happens to a swing barrier in a fire?
On most installations the panels open and hold on receiving a signal from the fire alarm panel, clearing the egress route. This is the fail-safe configuration. Controllers can also be set fail-secure, where panels stay locked on power loss. In Saudi Arabia arrangements of this kind on occupied premises fall within the framework of the General Directorate of Civil Defense, so the choice should be made with the fire strategy for that route from design stage rather than left at a controller default.
What motor does a swing barrier use?
Most current models use a brushless DC servo motor with a reduction gearbox and a position encoder on the shaft. The encoder lets the controller track panel position continuously, decelerate smoothly into each end of travel, and detect an obstruction by monitoring drive load. Motor rating has to suit the panel material and weight, since a heavy glass panel loads the drive considerably more than an acrylic one.
Is a swing barrier a turnstile?
It belongs to the same family. Turnstile is the general term for a pedestrian entrance control lane, and swing barriers, flap barriers, tripod turnstiles and full height turnstiles are all types within it. Swing barriers are sometimes called swing turnstiles or swing gates for that reason.
How wide is a swing barrier lane?
Standard lanes are sized for a single person walking through, while wide accessible lanes are considerably broader to take a wheelchair or trolley. The exact dimensions are a specification of the individual model and should be read from its datasheet, because panel length and pedestal spacing vary between products. Where the entrance serves the public, confirm the required accessible width with the client and the relevant authority before the lobby floor layout is fixed.
Which standards apply to entrance control in Saudi Arabia, and who supports the equipment locally?
Life-safety behaviour on occupied premises falls within the framework of the General Directorate of Civil Defense, and equipment specifications commonly reference standards published by SASO, the Saudi Standards, Metrology and Quality Organization, and by GSO, the GCC Standardization Organization. Large clients frequently add their own technical specifications. Because requirements change and vary by building type, the current position must be confirmed with the relevant authority for the specific project. For support within the Kingdom, TimeWatch equipment is represented in Saudi Arabia through Shuruq Saudi as authorised national distributor.
